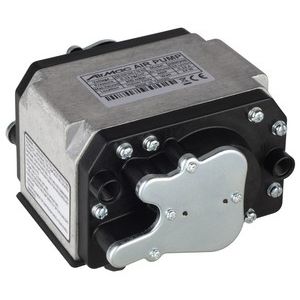

Diaphragm pump DBM30Bairfor gaselectric
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air, for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, medical
- Applications
- outlet
- Material
- metal
- Voltage
- 380 V
- Other characteristics
- compact, OEM, linear, miniature, integrated, screw-in
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 58 l/min
(15.32198 us gal/min)- Pressure
Min.: -300 mbar
(-4.351 psi)Max.: 310 mbar
(4.496 psi)- Power
24 W
(0.03 hp)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 40 °C
(104 °F)- Length
133 mm
(5 in)- Width
118 mm
(4.65 in)- Height
91 mm
(3.58 in)- Weight
1.9 kg
(4.19 lb)
Description
The DBM30B is the 30 l/min (at 150 mbar) miniature linear diaphragm pump from the Airmac DBM Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, compact design and low pressure differentials. This series has a metal housing for very low sound levels. Examples applications are air / gas monitoring, medical massage systems and vacuum holding. They are supplied with inlet and outlet 1/8" NPT porting, 2 x screw-in barb connectors), integrated M4 vibration mounts and connection leads. Available voltages: 230 V / 50 Hz.
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated M4 vibration mounts
› Long life linear drive
