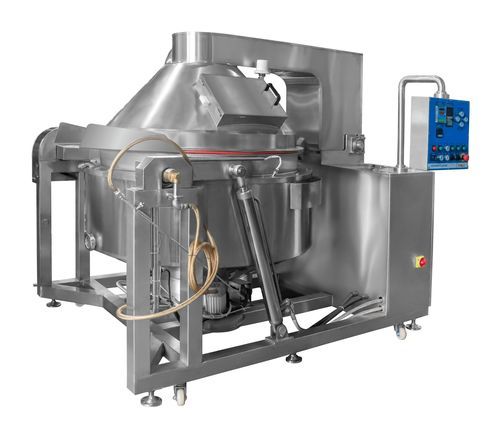

Gas industrial cooker HOTMIXER PLUS 500

batchsaucefor confectionery products

Overview
The HOTMIXER PLUS 500 is an industrial cooking mixer designed for high-capacity mixing and cooking of doughs, fillings, sauces and confectionery products. It integrates a 500 L jacketed kettle, gas heating with automatic ignition and a planetary mixing system with spring-loaded scrapers for uniform processing and efficient discharge.

Product highlights

• Batch capacity up to 500 liters (approx. up to 300 kg finished product depending on recipe).
• Insulated jacketed kettle with gas heating, automatic ignition, pilot burner and automatic flame controller for reduced heating time (manufacturer claim up to 20%).
• Planetary agitator with spring-loaded scrapers ensuring full bowl coverage and consistent homogenization.
• Automated hydraulic tilting of kettle and agitator for ergonomic discharge; agitator returns to original position at cycle end.
• Digital controls and displays for product temperature and oil heating; precise agitator speed control in hertz.
• Includes protein shredding system, hood and hydraulic pump.

Production capacity examples

• Approximately 300 kg (661 lbs) of savory dough per batch (approximate; depends on recipe).
• Approximately 150 kg (331 lbs) of shredded chicken per batch (approximate).
• Approximately 150 kg (331 lbs) of brigadeiro per batch (approximate).

Key technical functions

• Gas-heated insulated jacketed kettle with automatic ignition and pilot burner; access window with adjustable ventilation.
• Planetary mixing system with agitators and spring-loaded scrapers for efficient homogenization.
• Hydraulic tilting of kettle and agitator for safe, ergonomic discharge.
• Digital temperature displays and oil heating control; precise hertz-based speed regulation for the agitator.
• Integrated protein shredding system, hood and hydraulic pump; automatic agitator return at process end.

Technical specifications

• Model: HOTMIXER PLUS 500
• Production capacity: 500 L per batch (approx. up to 300 kg finished product; depends on recipe and ingredients)
• Dimensions (L × W × H): 3200 × 2200 × 3100 mm
• Power supply: 380 V three-phase, 3.7 kW
• Approx. weight: 810 kg (≈ 1,785.74 lbs)
• Heating: jacketed kettle, gas heating, automatic ignition, pilot burner, automatic flame controller
• Mixing system: planetary agitator with spring-loaded scrapers; speed control in hertz
• Discharge: automated hydraulic tilting of kettle and agitator; hydraulic pump included
• Includes: protein shredding system, hood; agitator automatic return feature
• Intended applications: high-capacity mixing and cooking of doughs, fillings, sauces and confectionery for industrial production
