High-voltage motor Sf315Y6-E
synchronousthree-phase6000 V

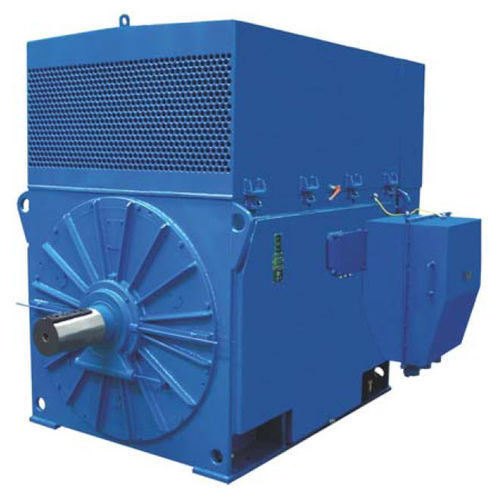

High-voltage motor - Sf315Y6-E - Cantoni Motor - synchronous / three-phase / 6000 V
High-voltage motor - Sf315Y6-E - Cantoni Motor - synchronous / three-phase / 6000 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
6000 V
Configuration
squirrel cage
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
high-voltage, IEC
Power

160 kW
(217.54 hp)

Intensity

19.8 A

Torque

1,542 Nm
(1,137.320834 ft.lb)

Rotational speed

991 rpm
(6,226.6366 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.1 Winding connection Y Starting current ratio [ 5.9 Frequency [Hz] 50 Rated output [HP] 220 Service factor [ 1.0 Efficiency at rated (full) load [ 94.8% Duty S1 Synchronous speed [rpm] 1000 Power factor at rated (full) load [ 0.82 Starting torque ratio [ 2.2 Frame size 315 Terminal box position on right side Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side 6320C3 Frequency converter supply on demand Bearing on ND-side NU320EM1 Mounting arrangement IM1001 (B3) Bearings regreasing yes
