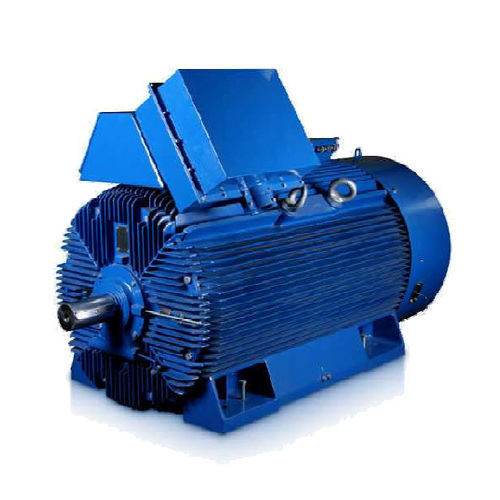

High-voltage motor Sh450H10Csynchronousthree-phase6000 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Voltage
- 6000 V
- Configuration
- squirrel cage, cast iron
- Protection class
- IP55
- Number of poles
- 10-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
355 kW
(482.67 hp)- Intensity
44.2 A
- Torque
5,707 Nm
(4,209.267186 ft.lb)- Rotational speed
594 rpm
(3,732.2121 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.6
Winding connection Y
Starting current ratio [ 6
Frequency [Hz] 50
Rated output [HP] 480
Service factor [ 1.0
Efficiency at rated (full) load [ 95.4%
Duty S1
Power factor at rated (full) load [ 0.81
Starting torque ratio [ 1
Sound pressure level [dB] 77
Frame size 450
Terminal box position góra/
Starting method DOL
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side 6324MC3
