High-voltage motor Sf355Y6-E
synchronousthree-phase6000 V

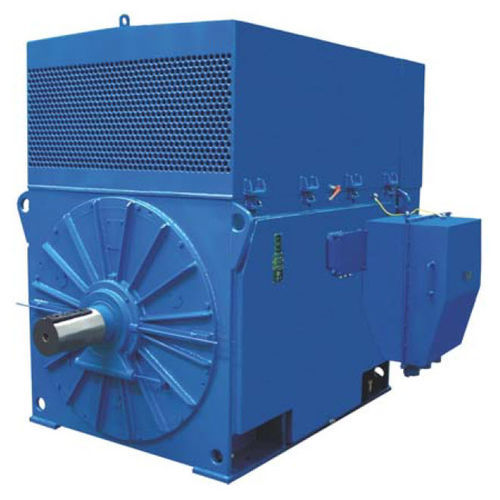

High-voltage motor - Sf355Y6-E - Cantoni Motor - synchronous / three-phase / 6000 V
High-voltage motor - Sf355Y6-E - Cantoni Motor - synchronous / three-phase / 6000 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
6000 V
Configuration
squirrel cage
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
high-voltage, IEC
Power

250 kW
(339.91 hp)

Intensity

31.2 A

Torque

2,424 Nm
(1,787.85065 ft.lb)

Rotational speed

985 rpm
(6,188.9375 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.4 Winding connection Y Starting current ratio [ 5.8 Frequency [Hz] 50 Rated output [HP] 340 Service factor [ 1.0 Efficiency at rated (full) load [ 93.9% Duty S1 Rated speed [rpm] 985 Power factor at rated (full) load [ 0.82 Starting torque ratio [ 2 Frame size 355 Terminal box position on right side Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side NU222EM1+6222MC3 Frequency converter supply on demand Bearing on ND-side NU222EM1 Mounting arrangement IM1001(B3) Bearings regreasing yes
