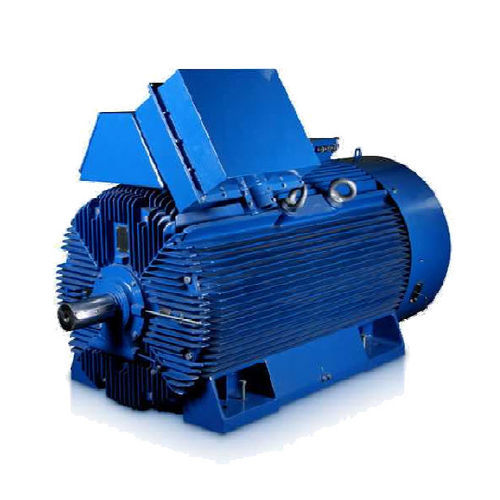

High-voltage motor Sh560H2Bsynchronousthree-phase6000 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Voltage
- 6000 V
- Configuration
- squirrel cage, cast iron
- Protection class
- IP55
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
1,600 kW
(2,175.39 hp)- Intensity
178 A
- Torque
5,109 Nm
(3,768.205021 ft.lb)- Rotational speed
2,991 rpm
(18,793.0073 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.2
Winding connection Y
Starting current ratio [ 6.5
Frequency [Hz] 50
Rated output [HP] 2150
Service factor [ 1.0
Efficiency at rated (full) load [ 97.5%
Duty S1
Power factor at rated (full) load [ 0.89
Starting torque ratio [ 0.6
Sound pressure level [dB] 85
Frame size 560
Terminal box position top
Starting method DOL
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side EFZLK11-125
Frequency converter supply on demand
Bearing on ND-side EFZLQ11-100
