High-voltage motor Sf400X4
synchronousthree-phase6000 V

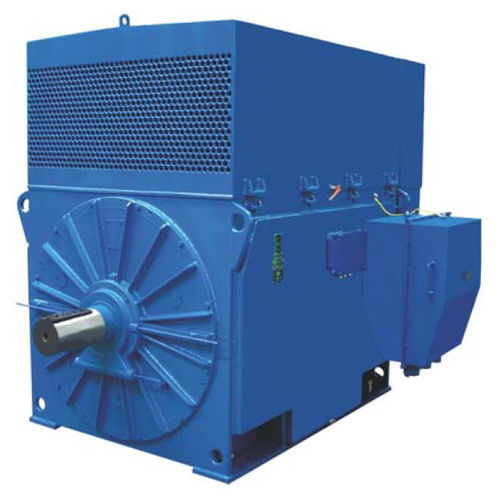

High-voltage motor - Sf400X4 - Cantoni Motor - synchronous / three-phase / 6000 V
High-voltage motor - Sf400X4 - Cantoni Motor - synchronous / three-phase / 6000 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
6000 V
Configuration
squirrel cage
Protection class
IP54
Number of poles
4-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
high-voltage, IEC
Power

500 kW
(679.81 hp)

Intensity

56.2 A

Torque

3,211 Nm
(2,368.312061 ft.lb)

Rotational speed

1,487 rpm
(9,343.0966 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.5 Winding connection Y Starting current ratio [ 6 Frequency [Hz] 50 Rated output [HP] 750 Service factor [ 1.0 Efficiency at rated (full) load [ 95.1 Duty S1 Synchronous speed [rpm] 1500 Power factor at rated (full) load [ 0.90 Starting torque ratio [ 1 Frame size 400 Terminal box position on right side Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side NU226EM1+6226MC3 Frequency converter supply on demand Bearing on ND-side NU226EM1 Mounting arrangement IM1001(B3) Bearings regreasing yes Cooling method IC611 Housing - material steel
