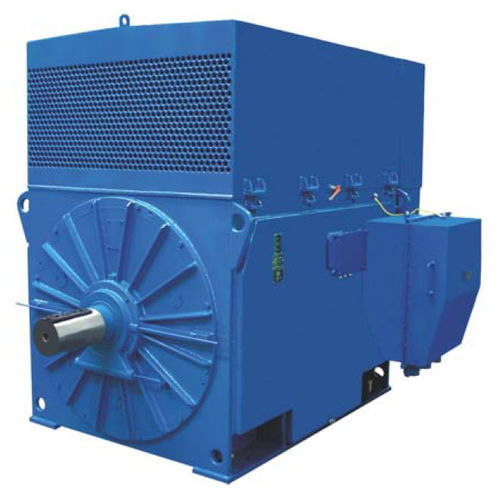

High-voltage motor Sf355X4B-Esynchronousthree-phase6000 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Voltage
- 6000 V
- Configuration
- squirrel cage
- Protection class
- IP55
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
250 kW
(339.91 hp)- Intensity
30.3 A
- Torque
1,609 Nm
(1,186.737498 ft.lb)- Rotational speed
1,482 rpm
(9,311.6806 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.4
Winding connection Y
Starting current ratio [ 5.9
Frequency [Hz] 50
Rated output [HP] 340
Service factor [ 1.0
Efficiency at rated (full) load [ 93.6%
Duty S1
Synchronous speed [rpm] 1500
Power factor at rated (full) load [ 0.86
Starting torque ratio [ 1.9
Frame size 355
Terminal box position on right side
Starting method DOL
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side NU222EM1+6222MC3
Frequency converter supply on demand
Bearing on ND-side NU222EM1
