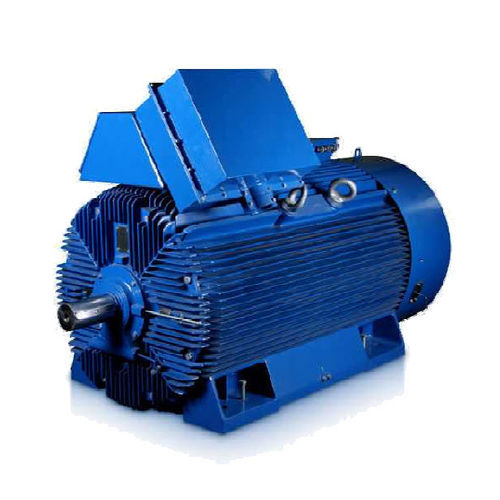

High-voltage motor Sh400H2Ainductionthree-phase6000 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, three-phase
- Voltage
- 6000 V
- Configuration
- squirrel cage, cast iron
- Protection class
- IP55
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
350 kW
(475.87 hp)- Intensity
40.1 A
- Torque
1,137 Nm
(838.608164 ft.lb)- Rotational speed
2,983 rpm
(18,742.7418 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.2
Winding connection Y
Starting current ratio [ 6.1
Frequency [Hz] 50
Rated output [HP] 480
Service factor [ 1.0
Efficiency at rated (full) load [ 95.7%
Duty S1
Power factor at rated (full) load [ 0.89
Starting torque ratio [ 1.2
Sound pressure level [dB] 84
Frame size 400
Terminal box position top
Starting method DOL
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side 6218MC3
Frequency converter supply on demand
Bearing on ND-side 6218MC3
