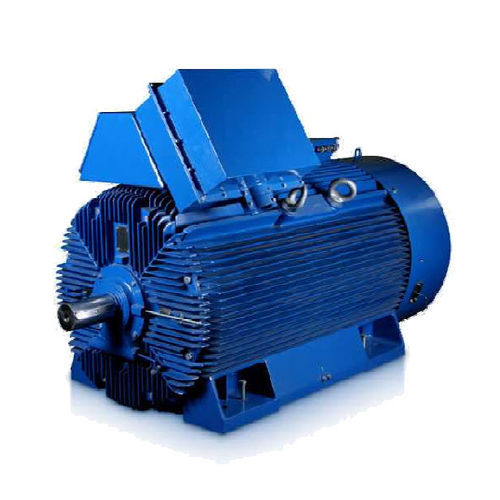

High-voltage motor Sh500H6Csynchronousthree-phase6000 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Voltage
- 6000 V
- Configuration
- squirrel cage, cast iron
- Protection class
- IP55
- Number of poles
- 6-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
900 kW
(1,223.66 hp)- Intensity
105 A
- Torque
8,638 Nm
(6,371.061845 ft.lb)- Rotational speed
995 rpm
(6,251.7694 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.3
Winding connection Y
Starting current ratio [ 6.5
Frequency [Hz] 50
Rated output [HP] 1200
Service factor [ 1.0
Efficiency at rated (full) load [ 97.0%
Duty S1
Power factor at rated (full) load [ 0.85
Starting torque ratio [ 1
Sound pressure level [dB] 81
Frame size 500
Terminal box position góra/
Starting method DOL
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side NU226EM1+6226MC3 /
Frequency converter supply on demand
Bearing on ND-side NU226EM1/
