High-voltage motor SVf400X6
synchronousthree-phase6000 V

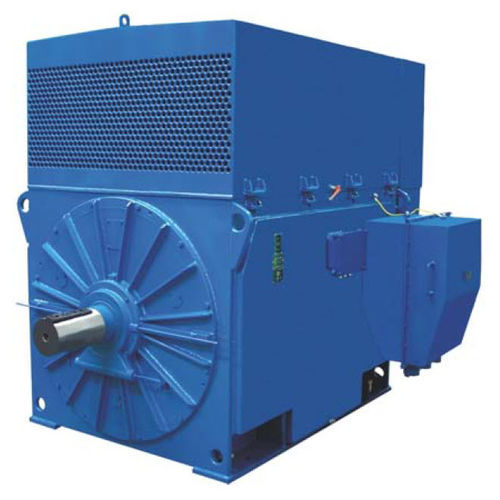

High-voltage motor - SVf400X6 - Cantoni Motor - synchronous / three-phase / 6000 V
High-voltage motor - SVf400X6 - Cantoni Motor - synchronous / three-phase / 6000 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
6000 V
Configuration
squirrel cage
Protection class
IP54
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
high-voltage, IEC
Power

400 kW
(543.85 hp)

Intensity

48.3 A

Torque

3,861 Nm
(2,847.727458 ft.lb)

Rotational speed

990 rpm
(6,220.3535 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.3 Winding connection Y Starting current ratio [ 5.8 Frequency [Hz] 50 Rated output [HP] 540 Service factor [ 1.0 Efficiency at rated (full) load [ 94.8% Duty S1 Power factor at rated (full) load [ 0.84 Starting torque ratio [ 1.2 Frame size 400 Terminal box position side of housing Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side 6324C3 Frequency converter supply on demand Bearing on ND-side 7322BTVP Mounting arrangement IM3011(V1) Bearings regreasing yes
