High-voltage motor Sf450X4-E
synchronousthree-phase6000 V

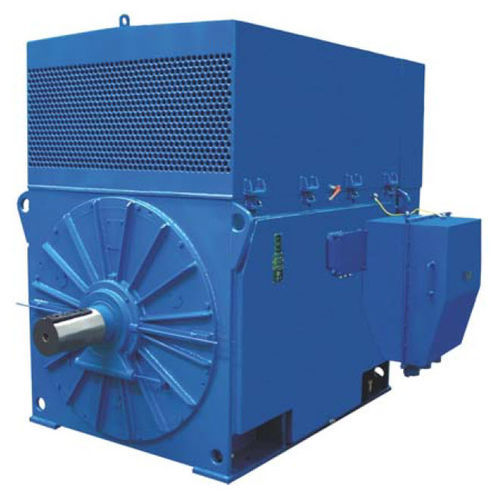

High-voltage motor - Sf450X4-E - Cantoni Motor - synchronous / three-phase / 6000 V
High-voltage motor - Sf450X4-E - Cantoni Motor - synchronous / three-phase / 6000 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
6000 V
Configuration
squirrel cage
Protection class
IP55
Number of poles
4-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
high-voltage, IEC
Power

650 kW
(883.75 hp)

Intensity

76.7 A

Torque

4,183 Nm
(3,085.22247 ft.lb)

Rotational speed

1,484 rpm
(9,324.247 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.3 Winding connection Y Starting current ratio [ 6 Frequency [Hz] 50 Rated output [HP] 870 Service factor [ 1.0 Efficiency at rated (full) load [ 94.8% Duty S1 Rated torque [Nm] 4183 Power factor at rated (full) load [ 0.86 Starting torque ratio [ 1.8 Frame size 450 Terminal box position on right side Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side NU226EM1+6226MC3 Frequency converter supply on demand Bearing on ND-side NU226EM1 Mounting arrangement IM1001(B3) Bearings regreasing yes
