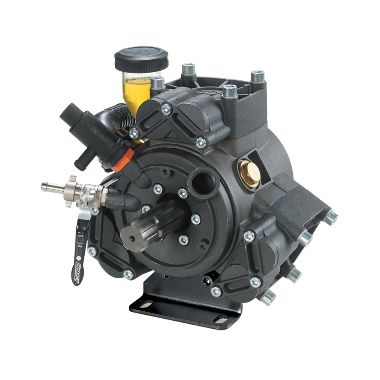

Water pump APS 51diaphragmstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure, treatment, spray
- Material
- stainless steel, aluminum
- Other characteristics
- standard
- Flow
Max.: 53.9 l/min
(14.23887 us gal/min)Min.: 36.5 l/min
(9.64228 us gal/min)- Pressure
20 bar, 30 bar, 40 bar
(290.075 psi, 435.113 psi, 580.151 psi)- Power
Max.: 5.2 kW
(7.07 hp)Min.: 0.3 kW
(0.41 hp)- Length
296 mm
(12 in)- Width
238 mm
(9.37 in)- Height
289 mm
(11.38 in)- Weight
16.4 kg
(36.16 lb)
Description
3 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: anodized aluminium.
Standard: safety valve.
On request: pressure accumulator and PTO protection.
Cataphoresis treatment on motorpump versions.
