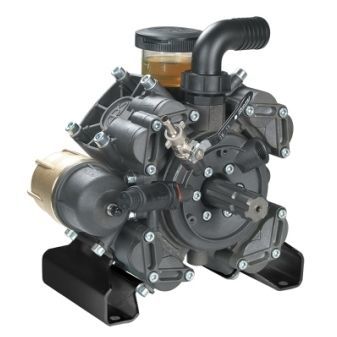

Water pump APS 96diaphragmstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure, spray, settling
- Material
- aluminum
- Flow
Max.: 94 l/min
(24.83217 us gal/min)Min.: 65 l/min
(17.17118 us gal/min)- Pressure
20 bar, 30 bar, 40 bar, 50 bar
(290.075 psi, 435.113 psi, 580.151 psi, 725.189 psi)- Power
Max.: 8.6 kW
(11.69 hp)Min.: 0.5 kW
(0.68 hp)- Length
345 mm
(14 in)- Width
236 mm
(9.29 in)- Height
340 mm
(13.39 in)- Weight
22.3 kg
(49.16 lb)
Description
4 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: anodized aluminium.
Standard: pressure accumulator and safety valve.
On request: PTO protection.
