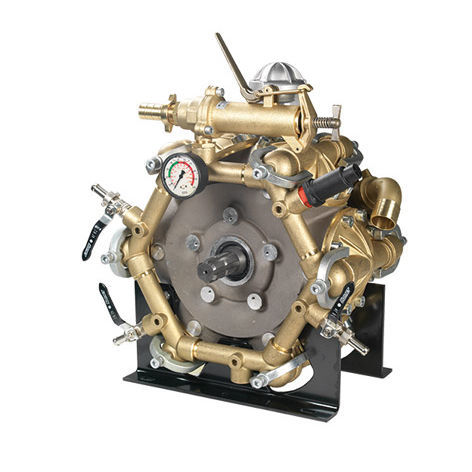

Diaphragm pump IDS 2200 – 2600waterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial
- Applications
- adjustment, spray
- Material
- brass
- Protection level
- standard
- Flow
Min.: 158 l/min
(41.73918 us gal/min)Max.: 216 l/min
(57.06116 us gal/min)- Pressure
20 bar, 30 bar, 40 bar, 50 bar
(290.075 psi, 435.113 psi, 580.151 psi, 725.189 psi)- Power
Min.: 1.3 kW
(1.77 hp)Max.: 19.3 kW
(26.24 hp)- Length
463 mm
(18 in)- Width
357 mm
(14.06 in)- Height
500 mm
(19.69 in)- Weight
76 kg
(167.55 lb)
Description
6 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: brass.
Standard: safety valve.
On request: PTO protection.
Available versions with adjustment valves and pressure gauge and versions without adjustment valves and without pressure gauge.
