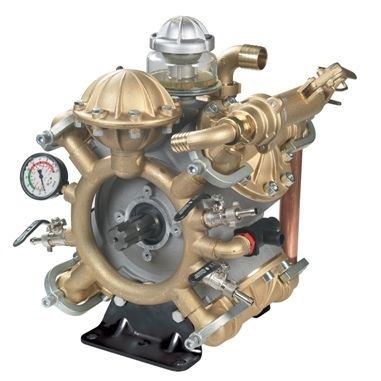

Water pump IDS 1400diaphragmstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure, adjustment, spray
- Material
- brass
- Other characteristics
- standard
- Flow
Min.: 101 l/min
(26.68138 us gal/min)Max.: 142 l/min
(37.51243 us gal/min)- Pressure
20 bar, 30 bar, 40 bar, 50 bar
(290.075 psi, 435.113 psi, 580.151 psi, 725.189 psi)- Power
Min.: 0.8 kW
(1.09 hp)Max.: 12.5 kW
(17 hp)- Length
474 mm
(19 in)- Width
362 mm
(14.25 in)- Height
464 mm
(18.27 in)- Weight
58 kg
(127.87 lb)
Description
4 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: brass.
Standard: pressure accumulator and safety valve.
On request: PTO protection.
Available versions with adjustment valves and pressure gauge and versions without adjustment valves and without pressure gauge.
