Diaphragm pump IDS 1000
waterstationaryindustrial

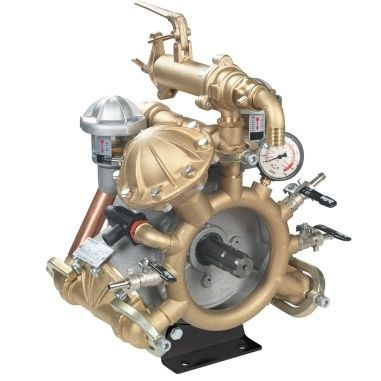

Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial
Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial
Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial - image - 2
Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial - image - 3
Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial - image - 4
Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial - image - 5
Diaphragm pump - IDS 1000 - COMET Spa - water / stationary / industrial - image - 6
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
water
Mobility
stationary
Domain
industrial
Applications
discharge, high-pressure, booster, adjustment, spray, suction
Material
brass
Other characteristics
large
Flow

Max.: 101 l/min
(26.68138 us gal/min)

Min.: 70 l/min
(18.49204 us gal/min)

Pressure

20 bar, 30 bar, 40 bar, 50 bar
(290.075 psi, 435.113 psi, 580.151 psi, 725.189 psi)

Power

Max.: 9.2 kW
(12.51 hp)

Min.: 0.6 kW
(0.82 hp)

Length

470 mm
(19 in)

Width

357 mm
(14.06 in)

Height

381 mm
(15 in)

Weight

42 kg
(92.59 lb)

Description

diaphragms in NBR (Desmopan® and Viton available on request). Parts in contact with spray liquid: brass. Standard: pressure accumulator and safety valve. On request: PTO protection. Available versions with adjustment valves and pressure gauge and versions without adjustment valves and without pressure gauge.
