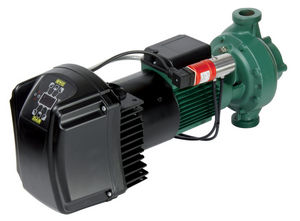

Impeller pump CM seriesfor hot waterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for hot water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, sanitary, air conditioner
- Applications
- suction, handling, circulation, for control, recirculation
- Material
- stainless steel, cast iron
- Other characteristics
- in-line, vertical, for heating, heating
- Flow
Max.: 420 m³/h
(14,832.16002 ft³/h)Min.: 1.2 m³/h
(42.3776 ft³/h)- Pressure
10 bar, 16 bar
(145.038 psi, 232.06 psi)- Fluid temperature
Max.: 140 °C
(284 °F)Min.: -10 °C
(14 °F)- Length
Max.: 1,113 mm
(44 in)Min.: 479 mm
(19 in)- Width
Max.: 1,040 mm
(40.94 in)Min.: 426 mm
(16.77 in)- Height
Max.: 1,440 mm
(56.69 in)Min.: 834 mm
(32.83 in)- Weight
Max.: 453 kg
(998.69 lb)Min.: 78 kg
(171.96 lb)
Description
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems.
CM, CM-G / DCM, DCM-G are in-line pumps designed for recirculation of water in civil and commercial applications in air-conditioning and heating
systems, also in the presence of solar collectors, and for circulation of domestic hot water. The letter D indicates twin versions.
CONSTRUCTION FEATURES OF THE PUMP
Flanged suction and delivery ports with threaded connectors for control gauges. Cast iron pump casing and motor support.
Stainless steel motor shaft. Cast iron or technopolymer impeller depending on model.
CONSTRUCTION FEATURES OF THE MOTOR
Three-phase four-pole asynchronous air-cooled motor.
