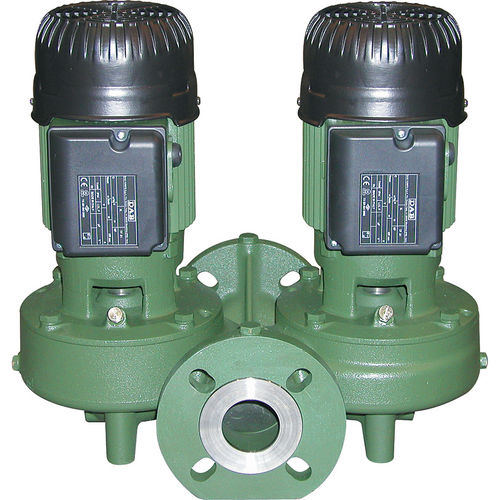

In-line pump L seriescentrifugalwaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, sanitary, air conditioner
- Applications
- circulation, control, for refrigeration
- Material
- cast iron
- Fluid specification
- for abrasive fluids
- Other characteristics
- in-line, vertical, heating
- Flow
Max.: 67 m³/h
(2,366.08267 ft³/h)Min.: 2 m³/h
(70.62933 ft³/h)- Pressure
10 bar
(145.038 psi)- Fluid temperature
Max.: 120 °C
(248 °F)Min.: -15 °C
(5 °F)- Output diameter
40 mm, 50 mm, 65 mm
(1.575 in, 1.969 in, 2.559 in)- Length
470 mm, 510 mm, 530 mm, 540 mm
(19 in, 20 in, 21 in, 21 in)- Width
280 mm, 310 mm, 420 mm, 520 mm
(11.02 in, 12.2 in, 16.54 in, 20.47 in)- Weight
Max.: 93.2 kg
(205.47 lb)Min.: 20.1 kg
(44.31 lb)
Description
Hot or cold water circulation pump with in-line ports, suitable for installation directly on the pipework of civil and industrial heating, air conditioning, refrigeration, and sanitary water systems.
