Centrifugal pump EUROSWIM serieswaterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- handling
- Fluid specification
- for aggressive media
- Voltage
- 220 V, 240 V
- Other characteristics
- low-noise, built-in
- Flow
Max.: 42 m³/h
(1,483.216 ft³/h)Min.: 0 m³/h
(0 ft³/h)43 m³/h
(1,518.53067 ft³/h)- Pressure
2.5 bar
(36.259 psi)- Head
Max.: 22 m
(72'02" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Length
600 mm, 720 mm
(24 in, 28 in)- Width
350 mm, 360 mm
(13.78 in, 14.17 in)- Height
400 mm
(15.75 in)- Weight
Max.: 24.5 kg
(54.01 lb)Min.: 16 kg
(35.27 lb)
Description

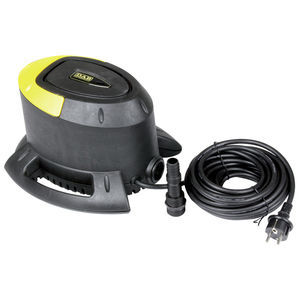

High performance self-priming centrifugal electric pumps with built-in high capacity prefilter. Motor completely isolated from the water. Extremely quiet and highly reliable, developed for water circulation and filtration in domestic and residential swimming pools. Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sectors.
PUMP DESIGN FEATURES
Technopolymer pump casing. Prefilter lid made from clear polycarbonate with bayonet-style closure. Nylon strainer. Fibreglass-reinforced
technopolymer impeller and diffuser.
MOTOR DESIGN FEATURES
Two-pole synchronous motor, available in single-phase or three-phase version. Die-cast aluminium motor housing with electrophoretic coating.
Single-phase version with thermal overcurrent protection and permanently connected capacitor included as standard. Protection to be provided by user
for three-phase version Carbon/alumina mechanical sea
