Centrifugal pump EUROCOVER
waterelectricsubmersible

Centrifugal pump - EUROCOVER - DAB - water / electric / submersible
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 2
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 3
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 4
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 5
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 6
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 7
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 8
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 9
Centrifugal pump - EUROCOVER - DAB - water / electric / submersible - image - 10
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Fluid
water
Operation
electric
Priming
submersible
Mobility
stationary
Domain
industrial
Material
stainless steel
Voltage
230 V
Protection level
maintenance-free, IP68
Other characteristics
large, automatic, built-in, medium-sized
Flow

Max.: 6 m³/h
(211.888 ft³/h)

Min.: 0.5 m³/h
(17.65733 ft³/h)

Head

Max.: 6.5 m
(21'03" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 35 °C
(95 °F)

Min.: 0 °C
(32 °F)

Width

304.4 mm
(11.98 in)

Height

198.1 mm
(7.8 in)

Weight

4.6 kg
(10.14 lb)

Description

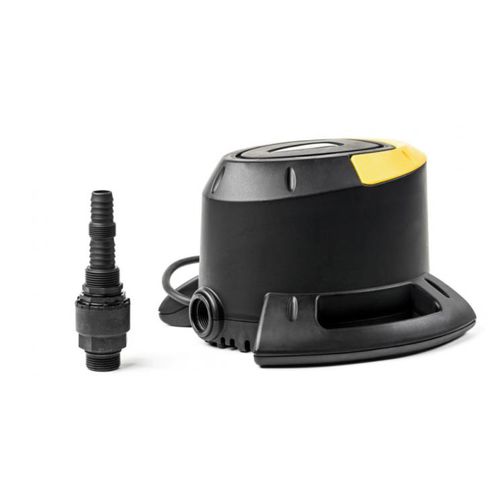

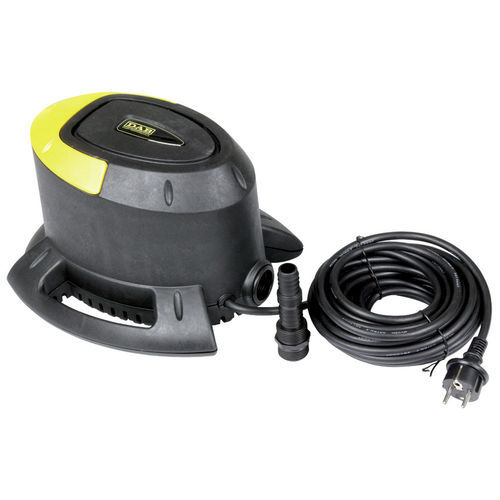

Fully automatic submersible electric pump, large support base design to increase stability and the possibility of operation in positions not perfectly perpendicular to the soil. Built-in float for automatic operation; efficient and maintenance-free pump. Suitable for winter use on top of swimming pool covers, to remove rain water and prevent the cover itself from breaking due to the heavy weight of the accumulated Eurocover is a pump designed for swimming pools, ponds and salt water for use in domestic, residential, institutional and commercial settings. Designed with a generous mounting base (for improved stability during operation) to remove water that builds up on pool covers. It includes a 10m power cable with plug, and a cord for placement. It comes with a multi-rubber fitting with a swing check valve. Ideal for medium-sized and large swimming pools. PUMP DESIGN FEATURES Technopolymer pump casing, triple seal with oil prechamber placed between rings. Built-in float for automatic operation. Rubber fitting with swing check valve. Technopolymer impeller MOTOR DESIGN FEATURES Submersible asynchronous motor with AISI 304 stainless steel stator, AISI 416 steel motor shaft
