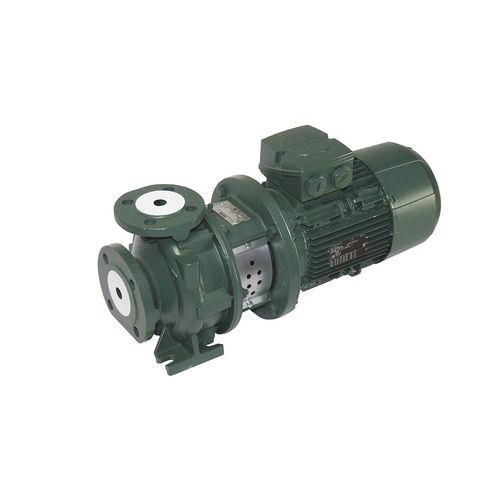

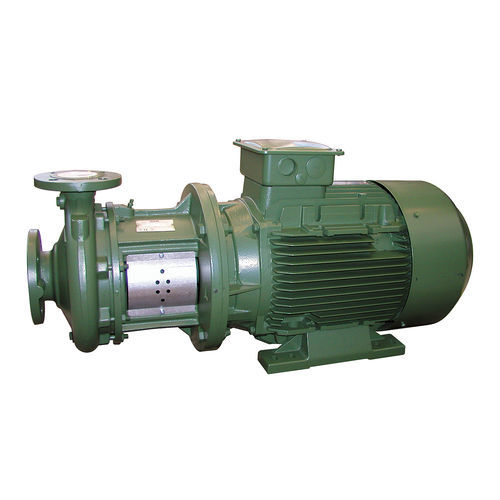

Centrifugal pump NKP-G series

waterelectricstationary

Standardised centrifugal monobloc electric pumps with coupling, designed for a wide range of applications, such as: water supply, hot water circulation for the heating system, circulation of cold water for air conditioning and refrigeration systems, transfer of liquids in agricultural, horticultural, and industrial environments, installation of pumping assemblies. APPLICATIONS Standardised centrifugal monobloc electric pumps with coupling, designed for a wide range of applications, such as:- Water supply.- Hot water circulation for the heating system.- Circulation of cold water for air conditioning and refrigeration systems.- Transfer of liquids in agricultural, horticultural, and industrial environments.- Installation of pumping assemblies. CONSTRUCTION FEATURES OF THE PUMP Cast iron single stage spiral body complying with DIN-EN 733 (formerly DIN 24255), cast iron support, flanges complying with DIN 2533, and DIN 2532 for DN 200. Cast iron impeller, closed and dynamically balanced, with compensation of the axial thrust through balancing holes, operation on interchangeable wear rings (on request). AISI 304 stainless steel pump shaft. Seal device: standardised mechanical seal according to DIN 24960 in carbon/silicon carbide with EPDM OR rings. CONSTRUCTION FEATURES OF THE MOTOR Closed asynchronous type motor with external ventilation, B3/B5 construction, two poles for NKP and four poles for NKM. Rotor running on ball bearings, largely oversized to ensure low noise and durability. For the protection of the motor, we recommend the use of remote overload cut-outs, in compliance
