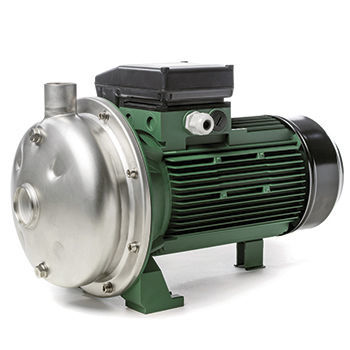

Centrifugal pump KI serieswaterelectricnormal priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- normal priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- suction, cooling, washing
- Material
- stainless steel
- Voltage
- 400 V, 220 V, 230 V
- Protection level
- IP55
- Other characteristics
- compact, built-in
- Flow
Max.: 11 m³/h
(388.46133 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
8 bar
(116.03 psi)- Power
1.1 kW, 11 kW, 30 kW
(1.5 hp, 14.96 hp, 40.79 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: -10 °C
(14 °F)- Length
620 mm, 1,030 mm, 1,130 mm
(24 in, 41 in, 44 in)- Width
370 mm, 530 mm, 580 mm
(14.57 in, 20.87 in, 22.83 in)- Height
480 mm, 640 mm, 740 mm
(18.9 in, 25.2 in, 29.13 in)- Weight
28 kg, 170 kg, 351 kg, 374 kg
(61.73 lb, 374.79 lb, 773.82 lb, 824.53 lb)
Description
Single-impeller stainless steel end suction centrifugal pump, suitable for thermal waters, industrial washing, civil and industrial pressure boosting (cold, hot, refrigerated liquid).
APPLICATIONS
Single-impeller stainless steel end suction centrifugal pump, suitable for thermal waters, industrial washing, civil and industrial pressure boosting (cold,
hot, refrigerated liquid).
CONSTRUCTION FEATURES OF THE PUMP
The Pump body and impeller in stainless steel AISI 304 make the pump more resistant to the corrosion, reliable and compact.
The support in aluminium and the mechanical seal in Carbon Ceramic and NBR complete the hydraulic part of the pump.
The pump is MEI comply.
CONSTRUTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling.
Rotor running on ball bearings, oversized to ensure low noise and durability.
Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.
For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
Three-phase IE2 motors as standard
