Ultrasonic transit-time flow meter BBUFM-P

volumefor waterfor wastewater

Product Overview

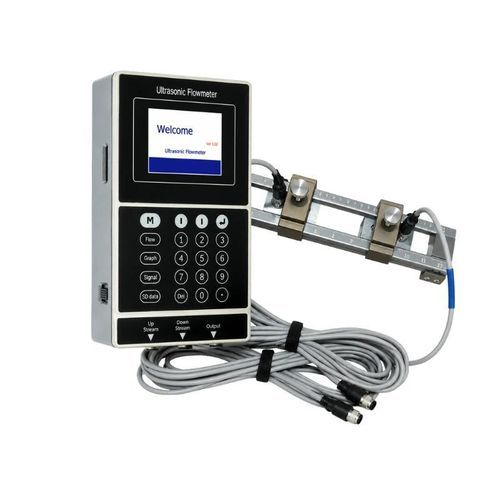

BBUFM-P is a portable clamp-on ultrasonic liquid flow meter designed for field testing, inspection and temporary flow verification. Using the transit-time principle, clamp-on transducers are mounted externally on an integrated alignment rail. No pipe cutting, process shutdown or contact with the liquid is required.

Key Features

• Portable field kit for inspection and temporary measurements
• Non-invasive clamp-on installation with no pressure drop or leakage risk
• Rechargeable battery for approximately 16 hours of operation
• Color TFT display and numeric keypad for easy setup
• Integrated transducer alignment rail for consistent positioning
• 4–20 mA analog output for integration with measurement systems

Typical Applications

• Pipeline inspection and on-site flow verification
• Field comparison of installed flow meters
• Temporary measurement on industrial process lines
• Water supply, wastewater and irrigation systems
• HVAC and energy-system water-flow testing

Standard Package

• Portable ultrasonic flow-meter transmitter
• Clamp-on rail-mounted transducers
• Transducer cable
• 4–20 mA output cable
• Power adapter
• Mounting accessories and fixtures
• Acoustic couplant
• Measuring tape
• Carrying case

Installation
V, N, Z or W mounting methods can be used depending on pipe diameter and site conditions. Ensure the selected pipe section is full and provides the required upstream and downstream straight lengths for accurate measurement.

Available Options
Transducer mounting: integrated alignment rail
Standard cable length: 5 m
Extended cable: up to 20 m in 5 m increments
Output: 4–20 mA

Selection Information

• Pipe outside diameter, material and wall thickness
• Liner material and thickness
• Liquid type and operating temperature
• Expected flow or velocity range
• Measurement location and available straight-pipe length
• Required cable length

Technical Specifications

• Measurement principle: Ultrasonic transit time
• Medium: Liquid in a full pipe
• Velocity range: -12 to +12 m/s
• Accuracy: ±0.5% of reading; ±0.01 m/s in low-velocity range
• Repeatability: 0.15%
• Linearity: 0.5%
• Pipe size: DN25 to DN5000
• Analog output: 4–20 mA, 750 Ω maximum load
• Battery operating time: Approximately 16 hours
• Display: 3.5 in TFT LCD, 480 × 320
• Transmitter operating temperature: -40 to +60 °C
• Standard transducer temperature: -40 to +60 °C
• Humidity: Up to 95% RH, non-condensing
• Transmitter enclosure: CNC-machined aluminum alloy
• Transmitter weight: Approximately 0.82 kg
• Transducers and rail weight: Approximately 1.29 kg
