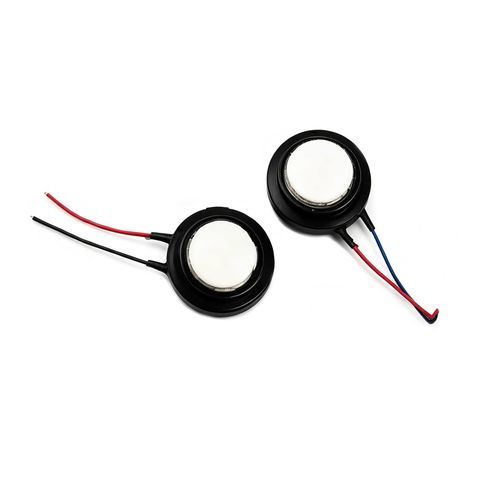

Piezoelectric ultrasonic transducer HCTG500KA

beammeasurement

Product Overview
The HCTG500KA ultrasonic transducer is engineered for integration into ultrasonic gas flow meter systems. It provides a nominal center resonant frequency of 500 kHz (±4%) and a narrow beam suitable for accurate transit-time measurements in gas applications. The element requires appropriate signal conditioning and processing when incorporated into sensor electronics.

Key Features

• Center resonant frequency: 500 kHz ± 4%
• Beam angle: 5° ± 1°
• Sensitivity (5 cm): -50 dB minimum
• Capacitance: 300 pF ± 20%
• Parallel impedance: 70 Ω ± 30%
• Maximum operating voltage: < 500 V
• Operating temperature range: -20 to 70 °C

Specifications

• Model: HCTG500KA
• Application: Ultrasonic gas flow meters (transit-time / time-of-flight)
• Center resonant frequency: 500 kHz ± 4%
• Beam angle: 5° ± 1°
• Sensitivity (measured at 5 cm): -50 dB min
• Capacitance: 300 pF ± 20%
• Parallel impedance: 70 Ω ± 30%
• Maximum operating voltage: < 500 V
• Operating temperature: -20 to 70 °C
