Ultrasonic flow transducer BBFM-Q34K

ultrasonic transit-timevolumegas

Overview

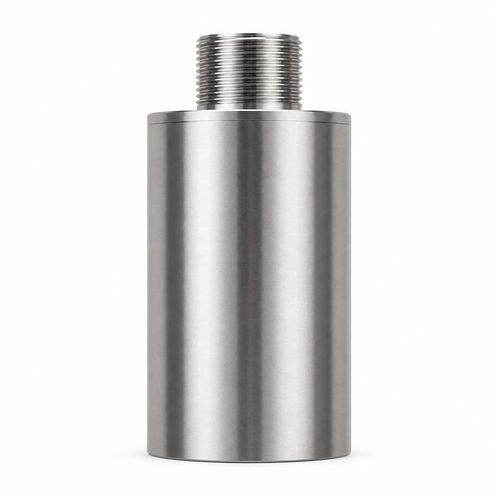

The BBFM-Q34K is a 34 kHz ultrasonic flow transducer designed for flue-gas flow measurement, boiler exhaust monitoring and industrial emission ducts. It is suitable for transit-time measurement in high-temperature gas. Operating range: -20 to +150°C. Rated for pressures up to 3 kgf (0.3 MPa) and carrying an IP68 protection rating. The housing is stainless steel to resist corrosion in exhaust environments.

Technical specifications
Model: BBFM-Q34K
Center frequency: 34 kHz ±5%
Minimum impedance: 900 Ω ±20%
Capacitance: 5,000 pF ±20% at 1 kHz
Operating voltage: Peak voltage <1,500 Vpp
Operating temperature: -20 to +150°C
Pressure rating: ≤3 kgf (0.3 MPa)
Half-power beam angle: 11.5° ±10% at -3 dB
Housing material: Stainless steel
Protection rating: IP68

Specified measurement duties

• Flue-gas flow measurement
• Boiler exhaust monitoring
• Industrial emission ducts
• High-temperature gas transit-time measurement

Technical specifications (list)

• Model: BBFM-Q34K
• Center frequency: 34 kHz ±5%
• Minimum impedance: 900 Ω ±20%
• Capacitance: 5,000 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <1,500 Vpp
• Operating temperature: -20 to +150°C
• Pressure rating: ≤3 kgf or 0.3 MPa
• Half-power beam angle: 11.5° ±10% at -3 dB
• Housing material: Stainless steel
• Protection rating: IP68
