Contact ultrasonic flow transducer BBFM-Q200K-C

ultrasonic transit-timefor liquidsfor process monitoring

Product overview

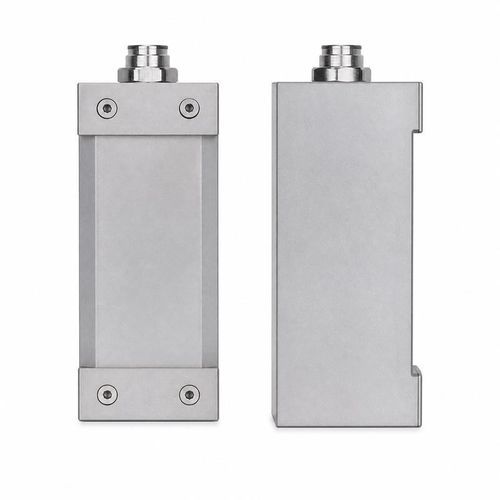

The BBFM-Q200K-C is a 200 kHz clamp-on ultrasonic flow transducer designed for non-intrusive installation on the outside of pipes. It is intended for ultrasonic flow meters where pipe penetration is undesirable, including pipeline monitoring and temporary flow testing.

Operating environment
Operational temperature range: -40 to +80°C. Rated for external pressure up to 3 kgf (0.3 MPa). Protection rating: IP68 for use in wet or submerged conditions.

Technical specifications

• Model: BBFM-Q200K-C
• Center frequency: 200 kHz ±5%
• Minimum impedance: 500 Ω ±20%
• Capacitance: 4,300 pF ±20% at 1 kHz
• Operating voltage: peak voltage <1,500 Vpp
• Operating temperature: -40 to +80°C
• Pressure rating: ≤3 kgf (0.3 MPa)
• Housing material: 304 stainless steel and PEEK
• Protection rating: IP68

Flow-measurement applications

• Clamp-on ultrasonic flow meters
• Pipeline flow monitoring
• Temporary flow testing
• Applications where pipe penetration is undesirable
