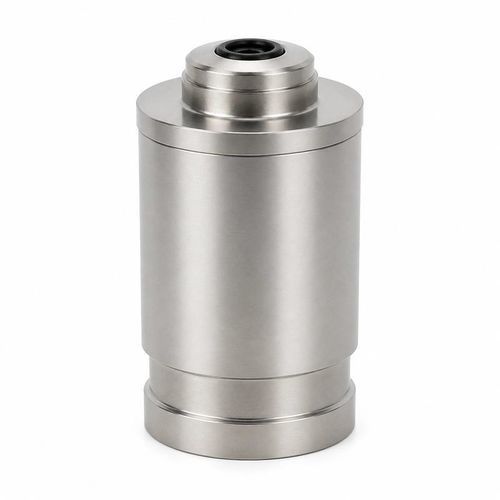

Ultrasonic transit-time ultrasonic transducer BBFM-Q70K

high-temperaturehigh-frequencymeasurement

Overview
The BBFM-Q70K is an ultrasonic flow transducer with a 70 kHz center frequency designed for flue-gas flow measurement, boiler exhaust monitoring, industrial emission ducts and high-temperature gas transit-time measurement. The operating temperature range is -40 to +150°C. Maximum pressure must not exceed 3 kgf (0.3 MPa). The transducer features an IP68 protection rating and a 304 + LY12 housing suitable for high-temperature gas applications.

Electrical and operating data
Parameter — Specification

• Model: BBFM-Q70K
• Center frequency: 70 kHz ±5%
• Minimum impedance: 700 Ω ±20%
• Capacitance: 2,600 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <1,500 Vpp
• Operating temperature: -40 to +150°C
• Pressure rating: ≤3 kgf (0.3 MPa)
• Housing material: 304 + LY12
• Protection rating: IP68

Applications

• Flue-gas flow measurement
• Boiler exhaust monitoring
• Industrial emission ducts
• High-temperature gas transit-time measurement

Technical specifications

• Model: BBFM-Q70K
• Center frequency: 70 kHz ±5%
• Minimum impedance: 700 Ω ±20%
• Capacitance: 2,600 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <1,500 Vpp
• Operating temperature: -40 to +150°C
• Pressure rating: ≤3 kgf (0.3 MPa)
• Housing material: 304 + LY12
• Protection rating: IP68
