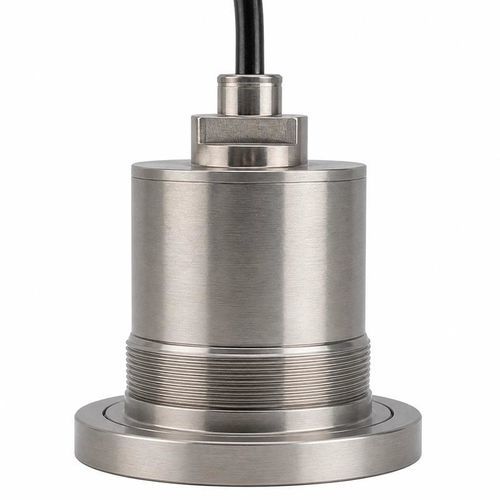

Ultrasonic transit-time flow transducer BBFM-Q25K-B

volumefor process monitoringgas

Low-frequency ultrasonic flow measurement in hot flue gas
The BBFM-Q25K-B is a 25 kHz ultrasonic flow transducer designed for continuous service in high-temperature flue-gas environments. It is suitable for flue-gas flow monitoring, boiler exhaust measurement, industrial emission ducts and transit-time measurement in hot gases where elevated temperatures and corrosive atmospheres are present.

Applications

• Flue-gas flow measurement
• Boiler exhaust monitoring
• Industrial emission ducts
• High-temperature gas transit-time measurement

Selection and integration
Choose the BBFM-Q25K-B considering gas composition and temperature, required acoustic path length, duct geometry and available installation space. Confirm operating pressure and ingress protection needs, and verify compatibility with your drive and receive electronics.

Technical specifications (table)
Parameter — Specification
Model — BBFM-Q25K-B
Center frequency — 25 kHz ±5%
Minimum impedance — 350 Ω ±20%
Capacitance — 6,000 pF ±20% at 1 kHz
Operating voltage — Peak voltage <3,000 Vpp
Operating temperature — -40 to +150°C
Pressure rating — ≤3 kgf or 0.3 MPa
Housing material — Titanium alloy
Protection rating — IP68

Caractéristiques / spécifications techniques

• Model: BBFM-Q25K-B
• Center frequency: 25 kHz ±5%
• Minimum impedance: 350 Ω ±20%
• Capacitance: 6,000 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <3,000 Vpp
• Operating temperature: -40 to +150°C
• Pressure rating: ≤3 kgf or 0.3 MPa
• Housing material: Titanium alloy
• Protection rating: IP68
