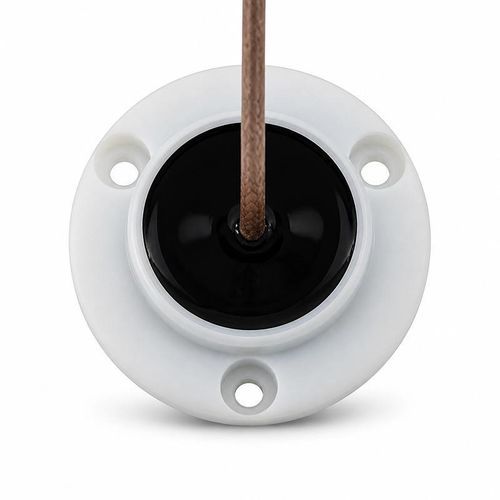

Ultrasonic transit-time flow transducer BBFM-Q1M-C

massgasfor process monitoring

Overview
The BBFM-Q1M-C is an ultrasonic transit-time transducer designed for flue-gas flow measurement in industrial ducts, boiler exhausts and high-temperature gas lines. It operates from -20 to +100°C, withstands pressures up to 10 kgf (≈1 MPa) and is rated IP68 for protection against dust and immersion.

Acoustic and electrical specifications

• Model: BBFM-Q1M-C
• Center frequency: 1 MHz ±5%
• Minimum impedance: 30 Ω ±50%
• Capacitance: 2,500 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <300 Vpp
• Operating temperature: -20 to +100°C
• Pressure rating: ≤10 kgf or 1 MPa
• Beamwidth: -3 dB half-power angle: 4.6° ±10%
• Protection rating: IP68

Flue and emission-duct applications

• Flue-gas flow measurement
• Boiler exhaust monitoring
• Industrial emission ducts
• High-temperature gas transit-time measurement

Technical specifications

• Model: BBFM-Q1M-C
• Center frequency: 1 MHz ±5%
• Minimum impedance: 30 Ω ±50%
• Capacitance: 2,500 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <300 Vpp
• Operating temperature: -20 to +100°C
• Pressure rating: ≤10 kgf or 1 MPa
• Beamwidth: -3 dB half-power angle: 4.6° ±10%
• Protection rating: IP68
• Typical applications: Flue-gas flow measurement, boiler exhaust monitoring, industrial emission ducts, high-temperature gas transit-time measurement
