Contact ultrasonic flow transducer BBFM-Q500K-B

ultrasonicvolumefor process monitoring

Overview

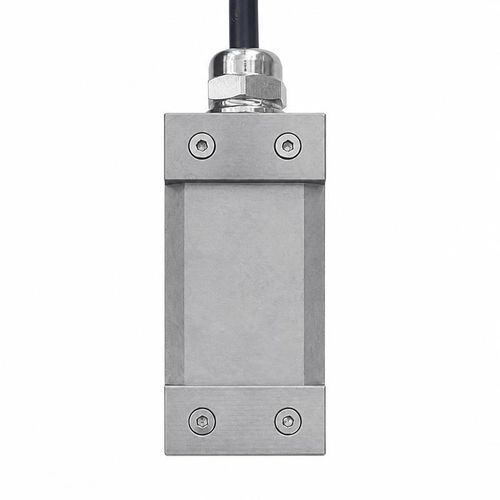

The BBFM-Q500K-B is a 500 kHz clamp-on ultrasonic flow measurement transducer. Mounted externally, it supports clamp-on ultrasonic flow meters, pipeline flow monitoring, temporary flow testing and measurement on pipes where penetration is undesirable.

Operating conditions
The operating temperature range is -40 to +80°C. Pressure rating is up to 3 kgf (0.3 MPa). The transducer has IP68 protection.

Technical specifications (table)
Parameter | Specification
Model | BBFM-Q500K-B
Center frequency | 500 kHz ±5%
Minimum impedance | 150 Ω ±20%
Capacitance | 4,000 pF ±20% at 1 kHz
Operating voltage | Peak voltage <600 Vpp
Operating temperature | -40 to +80°C
Pressure rating | ≤3 kgf or 0.3 MPa
Housing material | 304 stainless steel and PEEK
Protection rating | IP68

Where this transducer is used

• Clamp-on ultrasonic flow meters
• Pipeline flow monitoring
• Temporary flow testing
• Pipes where penetration is undesirable

Features / technical specifications

• Model: BBFM-Q500K-B
• Center frequency: 500 kHz ±5%
• Minimum impedance: 150 Ω ±20%
• Capacitance: 4,000 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <600 Vpp
• Operating temperature: -40 to +80°C
• Pressure rating: ≤3 kgf (0.3 MPa)
• Housing material: 304 stainless steel and PEEK
• Protection rating: IP68
