Ultrasonic transit-time flow meter BBUFM-H

volumefor waterfor wastewater

Product Overview

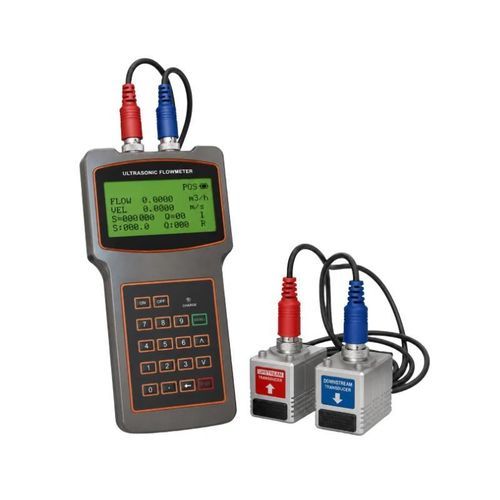

The BBUFM-H is a handheld clamp-on ultrasonic liquid flow meter designed for field inspection, commissioning and temporary measurements. Clamp-on transducers attach externally to the pipe (magnetic or bracket mounting) to measure flow without interrupting the process or introducing pressure loss.

Key Features

• Portable handheld design for rapid field and commissioning checks
• Non-intrusive clamp-on installation; no pipeline shutdown or cutting required
• Measurement accuracy ±1% and high repeatability
• Covers pipe sizes from DN15 to DN6000 depending on transducer
• Available standard and high-temperature transducers; transducer protection IP67
• Backlit 4 × 16-character LCD for on-site readout
• Built-in data logger (>2,000 records) and isolated RS232 communication
• Battery operation using three 1.2 V AAA Ni–MH cells; >12 hours continuous use

Technical Specifications
Measuring principle — Ultrasonic transit time
Accuracy — ±1%
Linearity — 0.5%
Repeatability — 0.2%
Flow velocity range — 0 to ±10 m/s
Pipe size — DN15 to DN6000 (depending on transducer)
Pipe materials — Steel, stainless steel, cast iron, copper, cement, PVC, aluminum, fiberglass, lined pipes
Measured liquids — Water, sewage, seawater, oils, chemicals, beverages and other acoustically conductive homogeneous liquids
Medium temperature — -30 to +160 °C (depending on transducer)
Turbidity — ≤10000 ppm with limited bubbles
Display — 4 × 16-character backlit LCD
Data storage — >2,000 measurement records
Communication — Isolated RS232
Main-unit environment — -20 to +60 °C; ≤85% RH
Transducer protection — IP67
Battery — 3 × 1.2 V AAA Ni‑MH
Continuous operation — >12 hours
Adapter — 90 to 260 VAC
Power consumption — 1.5 W
Main unit dimensions — 200 × 93 × 32 mm

Transducer Options
Small clamp-on — Pipe size: DN15 to DN100 — Temperature range: -30 to +90 °C
Medium clamp-on — Pipe size: DN50 to DN700 — Temperature range: -30 to +90 °C
Large clamp-on — Pipe size: DN300 to DN6000 — Temperature range: -30 to +90 °C
High-temperature clamp-on — Pipe size: DN15 to DN6000 — Temperature range: up to +160 °C
Mounting-bracket clamp-on — Pipe size: DN15 to DN700 — Temperature range: -30 to +90 °C
High-temperature bracket — Pipe size: DN15 to DN700 — Temperature range: up to +160 °C

Typical Applications

• Water-supply and drainage inspection
• HVAC systems, chilled-water and hot-water circuits
• On-site industrial pipeline flow verification and troubleshooting
• Petroleum, chemical and power industry process checks
• Commissioning, temporary and contract measurement tasks

Quick specifications

• Principle: Ultrasonic transit time
• Accuracy: ±1%
• Flow range: 0 to ±10 m/s
• Pipe range: DN15–DN6000 (model-dependent)
• Temperature: -30 to +160 °C (model-dependent)
• Data logger: >2,000 records
• Communication: Isolated RS232
• Battery life: >12 hours (3 × AAA Ni‑MH)
• Transducer rating: IP67
