Ultrasonic flow meter BBUFM-PR

volumefor waterfor wastewater

Product Overview

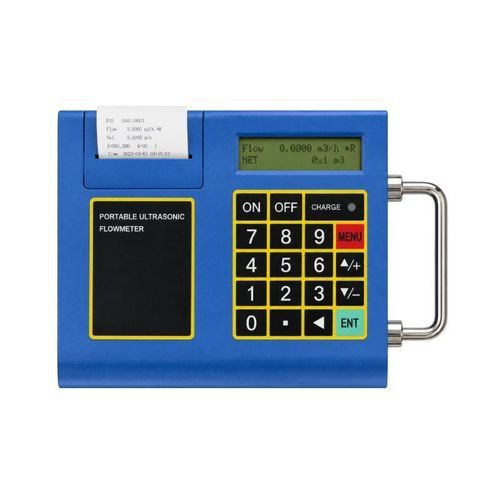

The BBUFM-PR is a portable clamp-on ultrasonic liquid flow meter for field testing, commissioning, maintenance and temporary measurement. Transit-time transducers mount on the outside of a closed pipe without cutting or introducing pressure loss. A backlit display, data logger and miniature thermal printer support immediate or scheduled printing of measurement results. The built-in rechargeable Ni‑MH battery provides approximately 20 hours of continuous operation.

Key Features

• Non-intrusive clamp-on measurement for quick installation
• Accuracy better than 1%, 0.5% linearity and 0.2% repeatability
• Suitable for pipe sizes DN15 to DN6000 (depending on transducer)
• Built-in miniature thermal printer and internal data logger
• Chinese and English operating interface
• RS485 communication for system integration
• Approximately 20 hours continuous battery operation
• Portable protective carrying case included

Technical Specifications

• Measuring principle: Ultrasonic transit-time
• Measured liquids: Water, seawater, industrial sewage, acidic and alkaline liquids, oils and other acoustically conductive liquids
• Pipe size: DN15 to DN6000 (depending on transducer)
• Flow velocity range: 0 to 30 m/s
• Accuracy: Better than 1%
• Linearity: 0.5%
• Repeatability: 0.2%
• Display: 2-line, 20-character backlit LCD
• Printer: Miniature thermal printer
• Communication: RS485
• Main-unit ambient temperature: -20 to +60 °C
• Standard transducer liquid temperature: ≤ 100 °C
• High-temperature transducer range: -40 to +160 °C
• Battery: Built-in rechargeable Ni‑MH battery
• Continuous operation: Approximately 20 hours
• External power: 220 VAC
• Power consumption: 1.5 W
• Main unit net weight: 2.5 kg

Transducer Options

• Small clamp-on: DN15 to DN100, -40 to +110 °C
• Medium clamp-on: DN50 to DN1000, -40 to +110 °C
• Large clamp-on: DN300 to DN6000, -40 to +110 °C
• Small high-temperature: DN15 to DN100, -40 to +160 °C
• Medium high-temperature: DN50 to DN1000, -40 to +160 °C

Typical Applications

• Water supply, drainage and wastewater treatment
• HVAC and energy management systems
• Petroleum, chemical and industrial liquid measurement
• Power, metallurgy and process monitoring
• Pipeline flow verification and equipment maintenance
• Temporary field measurement with printed records

Additional Technical Data

• Portable design for field commissioning and maintenance
• Immediate or scheduled printouts via built-in printer
• Data logging for later analysis
• RS485 for remote reading and integration
