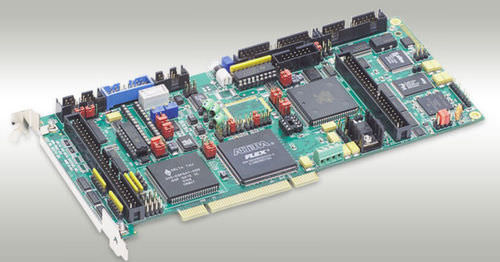

2-axis motion control card PMAC Mini PCI

8-axisembeddedPID

The PMAC Mini PCI is a compact, 2-axis version of the PMAC(1) family (unless accessories are added to expand the number of axes). It can be used in a PC’s PCI slot as a half-sized board (230 mm, 9” long) or it can be used standalone using serial communications for setup and/or application control. Programs for the PMAC Mini PCI (both motion and PLC programs) are 100% compatible with other versions of Non-Turbo PMAC. The PC can communicate to PMAC through the PCI slot or through a RS-232 or RS-422 serial port if standalone operation (i.e. without a PC) is desired. HARDWARE FEATURES 40 MHz DSP563xx CPU (Option 5AF) 128k x 24 internal zero-wait-state SRAM 512k x 8 flash memory for firmware and user backup Latest released firmware version RS-232 serial interface, 33 MHz PCI bus interface 2 channels axis interface circuitry, each including: 1) 16-bit +/-10V analog output 2) 3-channel (AB quad with index) differential/single-ended encoder inputs 1) 4 input flags, 2 output flags Interface to 4 external 16-bit serial ADCs 2 additional 3-channel (AB quad with index) differential/single ended encoder input Display, muxed I/O, direct I/O interface ports Buffered expansion port Clock crystal with +/-100 ppm accuracy PID/notch/feedforward servo algorithms 1-year warranty from date of shipment One CD-ROM per set of 1 to 4 PMACs in shipment (Cables, mounting plates, mating connectors not included)
