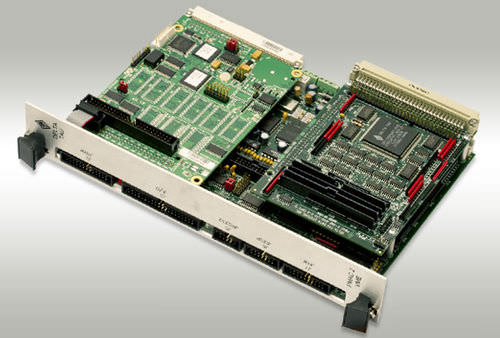

The PMAC2 VME provides state-of-the-art motion control of up to 8 axes for a wide variety of applications, including machine tools, robotics, semiconductor manufacturing, packaging equipment, and general-purpose automation. It utilizes the latest developments in electronics, software, and modern control theory to bring motion control capabilities to a whole new level.
The PMAC2 VME is designed as a bus expansion card, but is capable of standalone operation. It is VME bus-compatible, using two slots, possessing four or eight machine interface channels.
HARDWARE FEATURES
40 MHz DSP56002 CPU
128K x 24 zero-wait-state flash-backed SRAM
512K x 8 flash memory for user backup & firmware
Latest released firmware version
RS-232 and 422 serial interface, VME bus interface
4 channels axis interface circuitry, each including:
3 output command signal sets, configurable as either:
1) 2 serial data streams to external DACs, 1 pulse-&-direction, or
2) 3 PWM top-and-bottom pairs
3-channel (A, B, C)differential/single-ended encoder input
9 input flags, 2 output flags
Interface to 2 external serial ADCs, 8 to 18 bits
2 channels supplemental interface circuitry, each including:
1) 2-channel (A, B) differential/single-ended encoder input
2) 1 output command signal set, configurable as pulse-&-direction or PWM top-and-bottom pair
Display, MACRO, muxed I/O, direct I/O interface ports
Buffered expansion port
Clock crystal with +/-100 ppm accuracy
PID/notch/feedforward servo algorithms
1-year warranty from date of shipment
