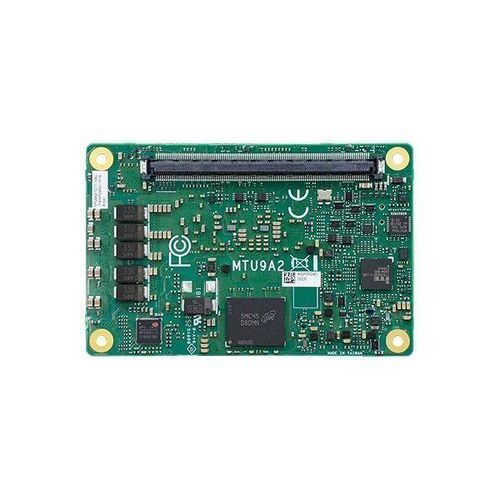

PICMG system-on-module MTU9A2

COM Express MiniIntel® Core™ Ultra 7 165UIntel® Core™ Ultra 7 155U

Overview
The MTU9A2 is a COM Express Mini (Type 10) System-on-Module from DFI for embedded and industrial applications. It integrates Intel® Core™ Ultra (Meteor Lake U-series) processors, supports LPDDR5 memory up to 32GB, provides dual-display capability and a wide set of I/O and expansion interfaces for demanding deployments.

Highlights

• COM Express® Mini form factor (84 x 55 mm) compliant with PICMG COM Express® R3.1, Type 10.
• Intel Core Ultra U-series processor options up to Intel Core Ultra 7 165U (10 cores, 15W).
• LPDDR5 memory up to 32GB; Single/Dual channel options; In-band ECC (IBECC) supported on Ubuntu.
• Wide operating temperature range: -40 to 85°C; industrial certifications (CE, FCC).

Technical specifications

• Processor: Intel Core Ultra U-series (Meteor Lake U). Available SKUs include Core Ultra 7 165U, Core Ultra 7 155U and Core Ultra 5 125U (specifications per SKU: P-cores, E-cores, frequencies, cache, 15W TDP).
• Memory: LPDDR5 up to 32GB; Dual channel LPDDR5 7467 MHz; 8GB option by project; IBECC supported on Ubuntu.
• BIOS: AMI SPI 256 Mbit.
• Graphics: Intel UHD graphics with DirectX 12, OpenGL 4.6, Vulkan 1.2 (Windows) and Mesa/OpenGL/Vulkan support on Linux. Hardware decode/encode up to 4K60 (details per codec in product sheet).
• Display: 1 x DDI and 1 x eDP. eDP up to 4096 x 2160 @ 60Hz; HDMI up to 4096 x 2160 @ 30Hz; DP++ up to 4096 x 2160 @ 60Hz.
• Dual displays supported (DDI + eDP).
• Expansion: 4 x PCIe x1 (Gen3), optional onboard NVMe SSDs (128/256/512/1024 GB on request).
• I/O: 1 x I2C, 1 x SMBus, 1 x eSPI, 1 x GSPI, 2 x UART (TX/RX), 2 x USB 3.2 Gen2, 8 x USB 2.0, 2 x SATA 3.0.
• Ethernet: 1 x Intel I226-IT (1 GbE + 2.5GbE capable).
• Digital I/O: 1 x 8-bit DIO; Audio: HD Audio.
• Security & management: TPM 2.0; Watchdog timer programmable 1–255 seconds; UEFI only.
• Power: ATX/AT modes supported, input 8.5–20 V; 5VSB and VCC_RTC present.
• OS support: Windows 10 IoT Enterprise 64-bit, Windows 11, Linux (UEFI).
• Mechanics: COM Express® Mini 84 x 55 mm.
• Compliance & certifications: PICMG COM Express® R3.1 Type 10; CE, FCC.
• Environment: Operating/Storage temperature -40 to 85°C; humidity 5–90% RH. MTBF and power consumption: TBD.
• Packing list: Cooler A71-108310-A00G included. Country of origin: Taiwan.

Expansion & I/O details

• PCIe lanes and connectors for peripheral expansion (4 x PCIe x1 Gen3).
• Serial & management buses: I2C, SMBus, eSPI, GSPI and 2 UART ports.
• Storage & USB: 2 x SATA 3.0, onboard NVMe options, 2 x USB 3.2 Gen2 and multiple USB 2.0 ports.

Ordering & support

• Multiple SKUs and NVMe options available on request; contact sales for customization and project-specific configurations.
• AMIBIOS image (256 Mbit) and OS packages available; technical support for industrial deployment and thermal solutions.
