Qseven® system-on-module EHL701
Intel® Celeron®Intel® PentiumIntel® Atom

Qseven® system-on-module - EHL701 - DFI - Intel® Celeron® / Intel® Pentium / Intel® Atom
Qseven® system-on-module - EHL701 - DFI - Intel® Celeron® / Intel® Pentium / Intel® Atom
Qseven® system-on-module - EHL701 - DFI - Intel® Celeron® / Intel® Pentium / Intel® Atom - image - 2
Qseven® system-on-module - EHL701 - DFI - Intel® Celeron® / Intel® Pentium / Intel® Atom - image - 3
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Form factor
Qseven®
Processor
Intel® Atom, Intel® Celeron®, Intel® Pentium
Ports
HDMI, LVDS, eDP, DVI, USB 2.0, USB 3.1, I2C, SATA III, SPI, UART, LPDDR4
Operating system
Linux, Windows 10 IoT Enterprise
Data storage
eMMC 128GB
Other characteristics
embedded
Applications
industrial
Memory size

4 GB, 8 GB, 16 GB

Description

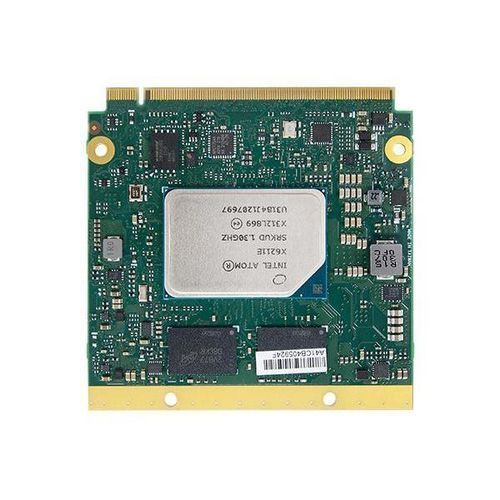

The EHL701 is a Qseven System-on-Module by DFI for embedded and industrial applications, supporting Intel® Atom® x6000 series and Intel® N/J series processors in a compact 70 × 70 mm Qseven form factor.

Key features
  • Form factor: Qseven — 70 mm × 70 mm.
  • Processor support: Intel® Atom® x6000 series; Intel® Pentium® N / J series; Intel® Celeron® N / J series.
  • Memory: 4 / 8 / 16 GB LPDDR4 down, dual-channel LPDDR4 3200 MHz.
  • BIOS: AMI SPI 256 Mbit (UEFI boot supported).
  • Operating temperature options: commercial and wide-temperature variants (e.g. 0–60 °C; -40–85 °C; -5–65 °C).


Display and graphics
  • Graphics: Intel® HD Graphics Gen9LP (OpenGL 5.0, DirectX 12, OpenCL 2.1).
  • Hardware codec: HW decode/encode support for AVC/H.264, HEVC/H.265, VP8/VP9, MPEG2, JPEG/MJPEG, VC1/WMV9, MVC.
  • Outputs: 1 × DDI (HDMI / DVI / DP++), 1 × eDP / LVDS. HDMI up to 3840×2160@30Hz; DP++ up to 4096×2160@60Hz; eDP up to 3840×2160@60Hz.
  • Dual-display: eDP/LVDS + DDI.


Expansion and I/O
  • PCIe / expansion: 4 × PCIe x1 (Gen2); SDIO; LPC; I2C; SMBus; SPI; UART (TX/RX).
  • USB / storage: Configurable USB — 1 × USB 3.1 + 8 × USB 2.0 or 2 × USB 3.1 + 6 × USB 2.0. SATA: 2 × SATA 3.0 (6 Gb/s). eMMC: up to 128 GB (eMMC 5.1, BGA-153, 8–128G).
  • Ethernet / IO: 1 × Intel I211 Gigabit Ethernet; 1 × 4-bit GPIO; HD Audio interface; watchdog timer (programmable 1–255 s).


Security, power and OS support
  • Security: optional dTPM or fTPM.
  • Power: inputs 5V, 5VSB, VCC_RTC. Example power consumption: Typical (x6212RE) 12V @ 0.98A (11.76 W); Max 12V @ 1.45A (17.4 W).
  • OS support: Windows 10 IoT Enterprise 64-bit; Linux (Intel graphics driver available).


Standards, ordering and origin
  • Certifications: CE, FCC Class B, RoHS, UKCA.
  • Ordering examples: EHL701-TC83-6211E (Part No. 770-EHL7011-000G) — Intel Atom® x6211E, 8GB LPDDR4, LVDS, 1×USB 3.1, 8×USB 2.0, 32GB eMMC, -40–85 °C. EHL701-TC80-6211E (Part No. 770-EHL7011-100G) — Intel Atom® x6211E, 8GB LPDDR4, LVDS, 1×USB 3.1, 8×USB 2.0, -40–85 °C.
  • Packing examples: board part numbers 770-EHL7011-000G / 770-EHL7011-100G; cooler A71-112000-030G.
  • Country of origin: Taiwan. MTBF and humidity data available in technical documentation.
