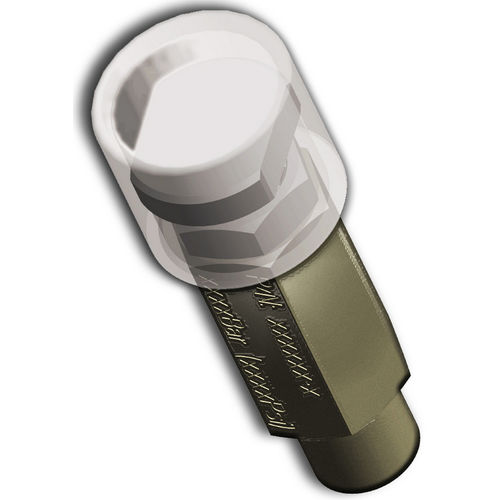

direct-reading pressure indicator / for oil
1900040 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
direct-reading pressure indicator / for oil direct-reading pressure indicator / for oil - 1900040 series
{{requestButtons}}

Characteristics

  • Display:

    direct-reading

  • Applications:

    for oil

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 380 bar (5,511.43 psi)

Description

Specifications
Height: 1,93-2,16 in. ( 49-55mm)
Key: 0,51 in. (13mm)
Thread: 1/8 BSP

Overpressure indicators are used to check pressure in the main or secondary line.
They are available for pressure up to 380bar ( 5511 psi).

This kind of indicators, when the set pressure is accidentally exceeded, react with the internal opening of the needle seal with the release of excess oil, avoiding the block of the progressive divider

When pressure drops below the alarm threshold the system comes back at the initial settings
