Mechanical pressure switch 1124459
for airstainless steel

mechanical pressure switch
mechanical pressure switch
Add to favorites
Compare this product


Characteristics

Technology
mechanical
Fluid
for air
Material
stainless steel
Pressure range

Min.: 30 bar
(435.11 psi)

Max.: 330 bar
(4,786.25 psi)

Process temperature

Min.: -10 °C
(14 °F)

Max.: 85 °C
(185 °F)

Description

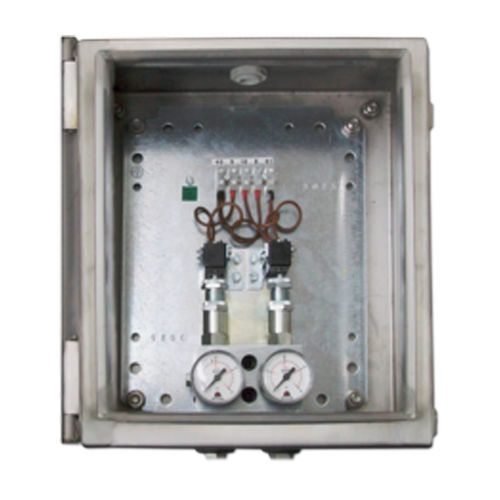

The pressure-end line will be installed outside the main line for the monitoring of correct operation. It allows you to send an alarm signal or to operate the lock of the machine, when the pressure in line does not reach the set calibration value. The product composed of: - 1 block with 2 1/4" BSP inlet ports - 2 micro-switches - 2 pressure adjustment valves - 2 pressure gauges - 2 air bleed valves Key features: - Electrical connections: Terminal block - Pressure adjustment: 435.114 - 4786.254 (30-330 bar) - Microswitch features: 250v ac. 15a mechanical working life 106 cycles - Temperature: From 14 F to 185 (-10°C a +85°C)
