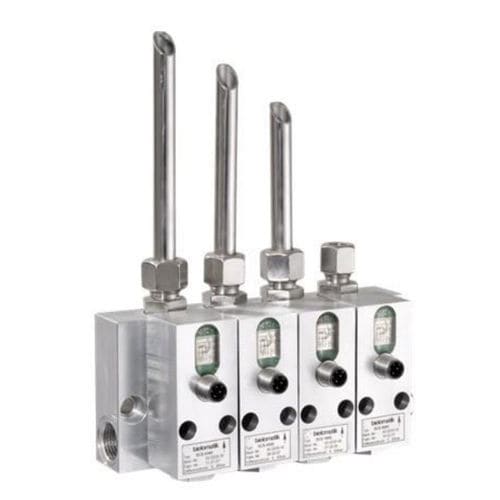

A pressure independent and monitored volume flow regulator
- Volume: 0,16 to 3,6 l/min fixed setting
- Pipe connection: G ½ ’’ On; G ⅜ ’’ Off
- Temperature: 0 to 80 °C
- Protecion grade: IP 67
- Operating pressure: 100 bar
- Lubricant: Mineral and synthetic oils
- Viscosity: 10 to 750 mm²/s
The flow regulator SCS is a pressure independent and monitored volume flow regulator. It is available from 0.16 l/min to 6.3 l/min. The flow regulator is available on a flange plate, which makes space- aving installation easy.
A measuring orifice fixed in the flow regulator determines the volume flow. A control piston ensures constant pressure difference at the measuring orifice, regardless of the pressure difference of inflow P and outflow A. The volume flow is mostly pressure and temperature independent. The function is ensured if the pressure difference from P to A is min. 5 bar and the available volume flow is more than 10% than the relevant actual volume flow at the operating viscosity of the oil. The integrated signal generator reports if the volume flow is lower than max. 20% of the actual volume flow. If the green LED on the valve glows, volume flow is ok. The red LED reports no or a very low volume flow. A protective diode for the cut-off discharge of inductive loads is integrated.
