gas pressure switch / for liquids / diaphragm / IP54

Add to MyDirectIndustry favorites
Compare this product
gas pressure switch / for liquids / diaphragm / IP54 gas pressure switch / for liquids / diaphragm / IP54
{{requestButtons}}

Characteristics

  • Fluid:

    for gas, for liquids

  • Technology:

    diaphragm

  • Other characteristics:

    IP54

  • Process temperature:

    Max.: 120 °C (248 °F)

    Min.: -30 °C (-22 °F)

  • Pressure range:

    Max.: 300 bar (4,351.13 psi)

    Min.: 0 bar (0 psi)

Description

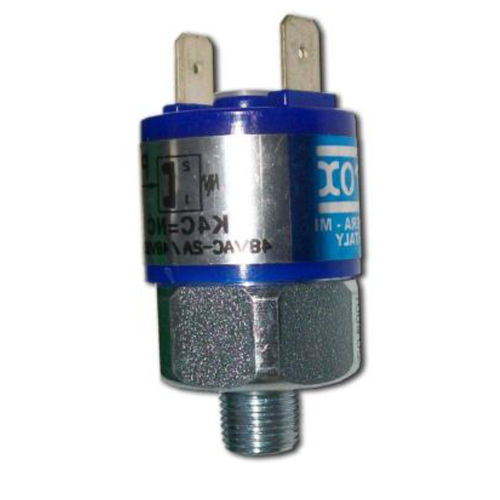

Pressure Switch

These may be used to control the pressure of liquids, or gases.
The expansion of the diagram actuates the contact.

Specifications:
- Max. Voltage 42V
- Max. contact rating 100VA
- Operating temp. -30°C to +120°C (-22°F to +248°F)
- Mechanical duration (10)7
- Protection IP54
- Max. safe pressure 30MPa (300 bar)(4300 psi.)
- Weight 0,05 Kg(.11 lb)
- Connection: M10x1
