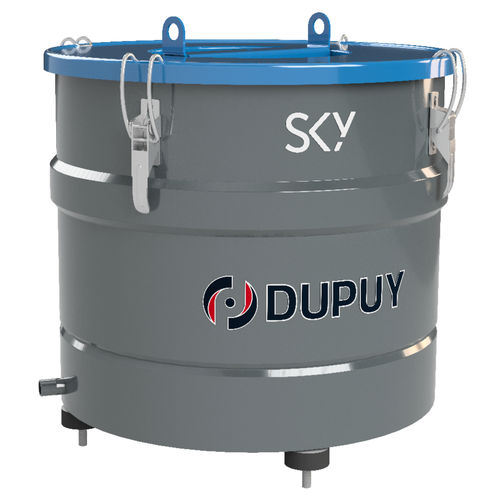

Oil mist collector SKY 1000/1500

filtration mediacentrifugalcompact

The new range of DU-PUY oil mist filters includes models with air flow rates from 250 up to 2,500m3/h, enabling them to meet the suction and pollutant filtration needs of machine tools of all sizes. This system allowspurified air to be put back into the environment and oil or emulsions to be recovered. Thanks to their compact design, SKY filtration units can be easily mounted directly on the machine tool cabin. Installation is simple and does not require any special machine connection accessories. Each machine tool and each machining operation has different parameters. It is essential to know the application well in order to choose the suitable SKY model: type of coolant, size of the cabin, and material used are some factors that affect the sizing of the oil mist filter model to be proposed. The suction unit is a low power, low consumption turbine with large air flow. The SKY range of filters is the only one suitable for the purification of oil mists on the market which, without any type of modification or adapter, can indiscriminately house two different types of filter media: a Multilayer filter (standard) or a pleated cartridge high filtering surface with coalescent pre-filter. The progressive efficiency multilayer filter in expanded polyurethane and fiberglass is certified EN779:2012 “G3” and “G4” respectively. The pleated cartridge filter is “M” certified (IFA/BGIA) with a special “F5” certified coalescent filter.
