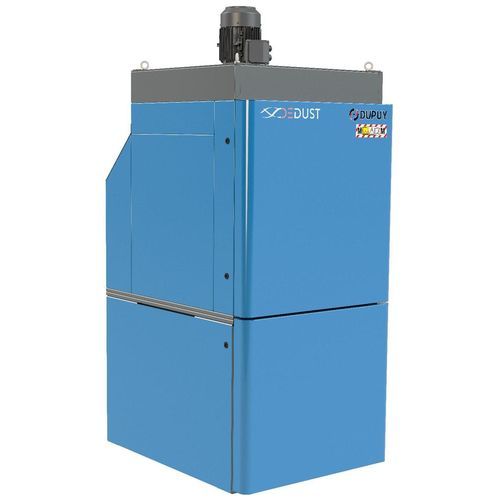

Cartridge dust collector DEDUST 4

pulse-jet backflowfor the pharmaceutical industryfor the food industry

Product overview
DEDUST 4 is a wheeled dust collector designed for small central extraction systems serving up to four workstations. The unit is driven by a 3 kW electric fan providing suction performance up to 3,800 m³/h with a static pressure around 270 mmH2O. Filtration is provided by four antistatic cartridge filter elements cleaned alternately by compressed air pulses; detached dust falls into a 90‑litre wheeled collection bin. The chassis is steel with epoxy powder paint.

Applications

• Mechanical industry
• Sandblasting
• Wood and plastic processing
• Food, chemical and pharmaceutical production

Vacuum unit
The suction unit consists of a 3 kW electric fan sized to deliver high airflow to the system and maintain required suction at connected points.

Filtration unit
DEDUST 4 includes 4 antistatic cartridge filter elements, category M, capable of retaining particles down to 1 µm. Total filtering surface is 400,000 cm² (4 × 10 m²). An automatic cleaning system uses compressed air jets (compressor not included) to periodically clean cartridges and preserve suction performance.

Collection unit
Collected dust is deposited into a 90‑litre container mounted on wheels for quick removal and disposal.

Technical specifications

• Power supply: 400 - 50 3~ V - Hz
• Power: 3 kW
• Maximum depression: 270 - 191 mmH2O
• Maximum air flow rate: 3800 - 2100 m³/h
• Nozzle: 1 x 250 mm
• Primary filter: Cartridge
• Filter elements: 4 category M antistatic cartridge filters, retention down to 1 µm, total filtering surface 400,000 cm² (4 × 10 m²)
• Automatic filter cleaning: compressed air jets (compressor not included)
• Collection bin capacity: 90 litres (wheeled)
• Frame material and finish: steel frame with epoxy powder paint
• Dimensions (L×W×H): 120 × 105 × 230 cm
• Weight: 350 kg
