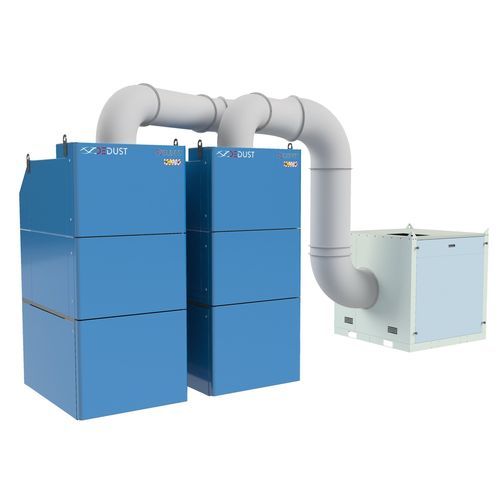

Cartridge dust collector DEDUST 24 ELF

pulse-jet backflowfor the food industryfor the pharmaceutical industry

Overview
The DEDUST 24 ELF is designed to operate in very high intensity centralized industrial environments, handling air flow rates up to 30,000 m³/h while maintaining stable performance under high and variable loads.

Filtration
The unit provides 600 m² of filter surface area distributed across 24 M-class antistatic polyester cartridge filters. Cartridges retain particles down to 1 µm. Standard equipment includes an automatic pneumatic cartridge cleaning system (compressor not included): compressed air is pulsed into cartridges on a timed sequence and a differential pressure sensor monitors saturation to trigger cleaning cycles as needed.

Collection
The DEDUST 24 ELF features dual 90-liter collection containers to simplify handling and speed up emptying during prolonged operation. A quick-release 90 L container on wheels is provided for rapid disposal of collected material.

Suction and Nozzle
The suction inlet supports configurations up to 400/700 mm (nozzle up to 700 mm) to accommodate very high air flows and various plant connections.

Applications

• Mechanical industry
• Wood and plastic processing
• Food, chemical and pharmaceutical industry

Filter unit details (tab)
The filtration module comprises 24 antistatic cartridge filters, Cat. M, giving a total filtering area reported as 600 m² (600,000 cm²). Cartridges capture particles down to 1 µm. The automatic pneumatic cleaning system maintains filter efficiency and is activated by a differential pressure sensor (compressor not included).

Collection unit details (tabs)

• Two 90-liter containers optimize collection management and accelerate emptying operations during extended use.
• Collected dust is also deposited in a quick-release wheeled container (90 L) for fast disposal.

Technical specifications

• Maximum air flow rate: 30,000 m³/h
• Nozzle/inlet: 1 x 400/700 mm (suction inlet up to 700 mm)
• Primary filter: Cartridge (24 M-class antistatic polyester cartridges)
• Filter surface area: 600 m² (also reported as 600,000 cm²)
• Cartridge retention: particles down to 1 µm
• Filter cleaning: automatic pneumatic cartridge cleaning system (compressor not included); differential pressure sensor triggers cleaning
• Collection: dual 90-liter containers; quick-release 90 L container on wheels
• Dimensions: 287 x 185 x 295 h
• Weight: 1800 kg
