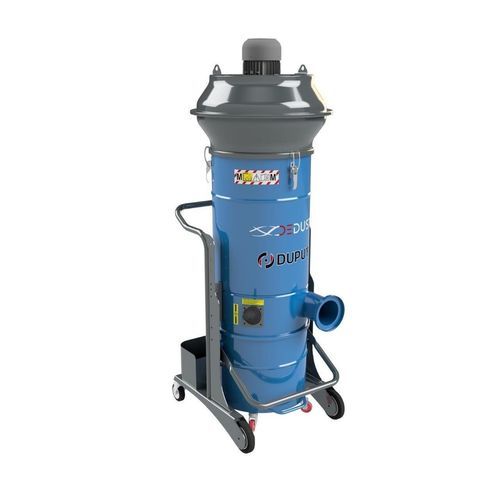

Industrial vacuum cleaner DEDUST 20 PRO

drydustfine dust

Short description
The DEDUST 20 PRO is a vacuum cleaner for suspended dust designed for industrial environments. It is suited to extracting fine, light dust produced during dry processing. The unit is intended for centralized systems or fixed installations, delivering a high airflow for effective dedusting of the work area and improved operator safety.

Construction
The structure is fully made of painted steel. The compact, robust design is engineered for continuous industrial use.

Filtration
The filtration system uses a class L polyester star filter compliant with IEC 60335-2-69. Filter cleaning is performed by a simple, reliable manual shaking system.

Data sheet (key technical data)
Power supply: 400 - 50 3~ V - Hz
Power: 2.2 kW
Maximum depression: 270 mmH2O
Maximum air flow rate: 2,500 m³/h
Nozzle: 120 mm
Primary filter: Pockets
Capacity: 65/100 lt.
Dimensions: 61 x 71 x 184 h (cm)
Weight: 105 kg

Technical specifications

• Power supply: 400 - 50 3~ V - Hz
• Power: 2.2 kW
• Maximum depression: 270 mmH2O
• Maximum air flow rate: 2,500 m³/h
• Nozzle diameter: 120 mm
• Primary filter type: Pockets
• Container capacity: 65/100 lt.
• Dimensions (W x D x H): 61 x 71 x 184 cm
• Weight: 105 kg
• Filter class: L polyester star filter (complies with IEC 60335-2-69)
• Filter cleaning: manual shaking system
• Construction: painted steel structure, compact design for continuous industrial use
• Application: extraction of fine, light dust from dry processing; suitable for centralized systems or fixed installations
