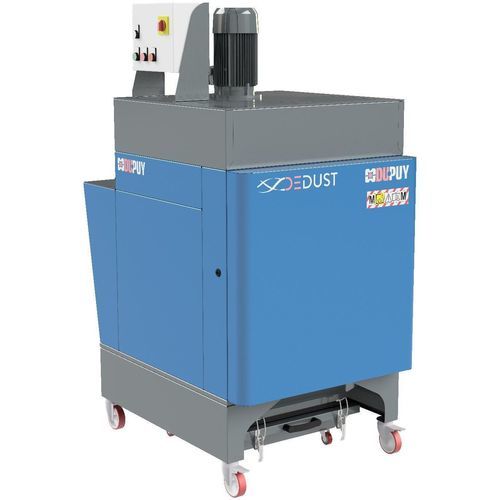

Cartridge dust collector DEDUST 2

pneumatic backblowingfor the food industryfor the pharmaceutical industry

Product description
DEDUST 2 is an industrial dust collector engineered for direct extraction of suspended dust and fumes at high flow rates up to 2,400 m³/h. It is driven by a 1.5 kW electric fan and features a compressed-air reservoir to perform alternate cleaning of the two cartridge filters, maintaining consistent suction performance. The unit can be fitted with a single 200 mm diameter suction arm or two self-supporting 150 mm arms (3 m each) to serve two workstations simultaneously. The machine is supplied with a CE electrical panel, 10 m neoprene cable and a 16 A socket. Frame is steel with epoxy powder coating for long service life.

Applications

• Mechanical industry
• Sandblasting
• Wood and plastics processing
• Food, chemical and pharmaceutical sectors

Vacuum unit
The suction module consists of a 1.5 kW electric fan designed to deliver high air flow to the system and enable effective material capture.

Filtration unit
The filtration section provides a large filtering surface and low pressure drop. It is equipped with two Cat. M antistatic cartridge filters that retain particles down to 1 µm, with a total filtering area of 200,000 cm². Standard equipment includes an automatic pneumatic cartridge cleaning system powered by the onboard compressed-air reservoir.

Collection unit
Aspirated dust is deposited into a 30 L discharge container mounted on wheels for quick removal and disposal of collected material.

Technical specifications

• Power supply: 400 V, 50 Hz, 3~
• Motor power: 1.5 kW
• Maximum depression: 142 - 115 mmH2O
• Maximum airflow: 2400 - 1350 m³/h
• Nozzles/arms: 1 x Ø200 mm or 2 x Ø150 mm (3 m)
• Primary filter: 2 x cartridge, Cat. M, antistatic (retention ≥ 1 µm; total area 200,000 cm²)
• Collection container: 30 L (on wheels)
• Dimensions (L x W x H): 120 x 83 x 172 cm
• Weight: 235 kg
• Supplied: CE electrical panel, 10 m neoprene cable, 16 A socket
