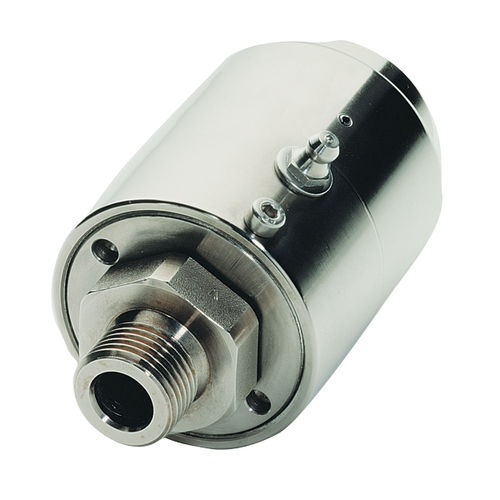

Water rotary union 1800 SRDE series
for airfor oilfor vacuum

water rotary union
water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


Characteristics

Medium
for water, for air, for oil, for vacuum, for chemicals
Applications
hydraulic, high-pressure, pneumatic, low-pressure, for transfer, for pipes, for rollers, medium-pressure, spray
Material
stainless steel, carbon steel
Other characteristics
screw-in, with seal, low-speed, large
Pressure

Max.: 1,500 bar (21,756 psi)

Min.: 0 bar (0 psi)

Rotational speed

Max.: 1,500 rpm (9,425 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Nominal size

Max.: 3 in

Min.: 0.25 in

Description

Description: Attached fittings on high pressure hoses, spray painting, hydraulic hose reels, robots… Activities: – Food – Chemistry, Plastic, Health – Energy, Environment – Metallurgy, Mechanics and Subcontracting – Trading Technical Data: Number of ports: 1 way Fluid: Air, Water, Oil Rotation Speed: Articulation (up to 5 RPM), Low speed (from 5 to 20 RPM), Intermediate speed (from 20 to 1500 RPM) Pressure working: Very Low (from -0,6 bar to 0 bar), Low (from 0 to 10 bars), Intermediate (from 0 to 100 bars), High (from 0 to 350 bars), Very High (from 0 to 1500 bars) Size: from 1/4″ to 3/8″, from 3/8″ to 1/2″, from 1/2″ to 1″, from 1″ to 1″ 1/4, from 1″ 1/4 to 1″ 1/2, from 1″ 1/2 to 2″, from 2″ to 3″ Material: Steel, Stainless Steel Surface treatment: Chemical Nickel Implantation: Straight, Angle elbow Temperature working: -20°C à 200°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.

Catalogs

No catalogs are available for this product.

See all of Duff-Norton Europe‘s catalogs
