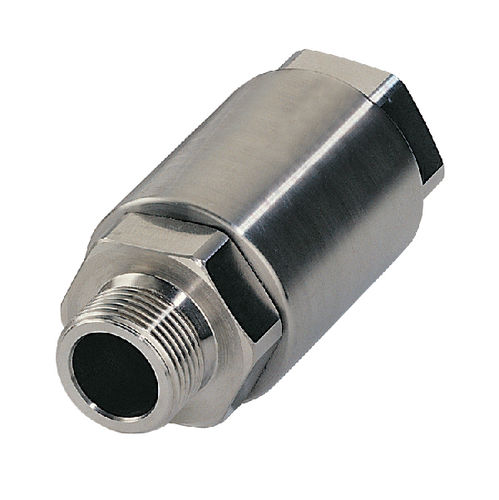

Water rotary union 1000-2 series
for airfor oilfor vacuum

water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


for water, for air, for oil, for vacuum, for chemicals
hydraulic, low-pressure, pneumatic, for transfer, for pipes, for rollers, for construction vehicles
stainless steel, carbon steel
Other characteristics
screw-in, with seal, low-speed, orientable, large-diameter, large-diameter

Min.: 0 bar (0 psi)

Max.: 100 bar (1,450 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 20 rpm (126 rad.min-1)

Nominal size

Min.: 0.25 in

Max.: 5 in


Description: With their simple design, these connections allow you to carry your fluids up to 100 bar pressures while ensuring either an oscillating movement or a continuous rotation of a few rpm. Activities: – Food – Construction, Building, Wood, Habitat – Energy, Environment – Metallurgy, Mechanics and Subcontracting – Trading – Paper, Printing, Publishing – Transport and Logistics Technical Data: Number of ports: 1 way Fluid: Air, Water, Oil Rotation Speed: Articulation (up to 5 RPM), Low speed (from 5 to 20 RPM), Intermediate speed (from 20 to 1500 RPM) Pressure working: Very Low (from -0,6 bar to 0 bar), Low (from 0 to 10 bars), Intermediate (from 0 to 100 bars) Size: from 1/4″ to 3/8″, from 3/8″ to 1/2″, from 1/2″ to 1″, from 1″ to 1″ 1/4, from 1″ 1/2 to 2″, from 2″ to 3″, from 3″ to 4″, from 4″ to 5″ Material: Steel, Stainless Steel Surface treatment: Chemical Nickel Implantation: Straight, Angle elbow Temperature working: -20°C à 200°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.


Other Duff-Norton Europe products

Rotary unions
