Water rotary union 3S series
for oilfor airfor vacuum

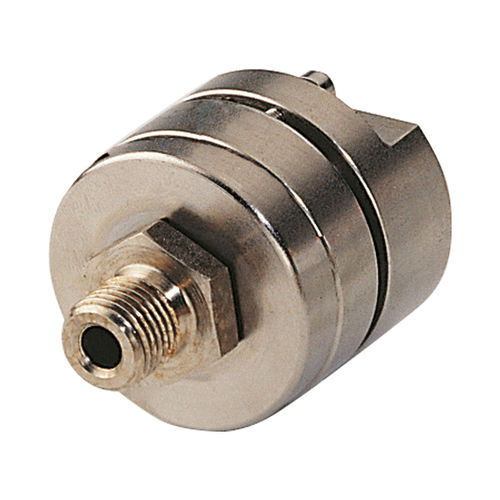

Water rotary union - 3S series - Duff-Norton Europe - for oil / for air / for vacuum
Water rotary union - 3S series - Duff-Norton Europe - for oil / for air / for vacuum
Water rotary union - 3S series - Duff-Norton Europe - for oil / for air / for vacuum - image - 2
Water rotary union - 3S series - Duff-Norton Europe - for oil / for air / for vacuum - image - 3
Add to favorites
Compare this product

Characteristics

Medium
for water, for oil, for air, for vacuum
Applications
pneumatic, low-pressure, for transfer, for pipes, for rollers, for the chemical industry, for the plastics industry, for the food industry
Material
aluminium, carbon steel
Other characteristics
radial, screw-in, ball bearing, compact, high-speed, right-angle, orientable, light, small
Rotational speed

Max.: 5,000 rpm
(31,415.93 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Nominal size

Max.: 0.25 in

Min.: 0.125 in

Description

These rotary unions are mainly used on clutches and pneumatic control systems. Surface treatment: Not available Implantation: Angle elbow Temperature working: Up to 120°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.
