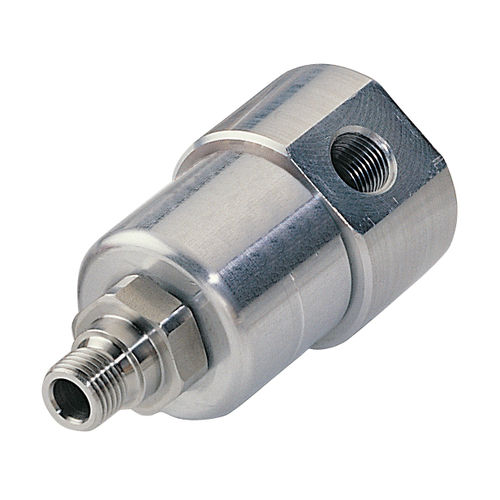

Water rotary union 800SR5 series
for airfor oilfor steam

water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


Characteristics

Medium
for water, for air, for oil, for steam
Number of passages
2-passage
Applications
hydraulic, pneumatic, low-pressure, for transfer, for pipes, for rollers, for rubber and plastic applications, for plastics, for injection molding equipment, for the plastics industry
Material
aluminum, stainless steel, carbon steel
Other characteristics
radial, screw-in, ball bearing, compact, high-speed, right-angle, light
Pressure

Min.: 0 bar (0 psi)

Max.: 100 bar (1,450 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 5,000 rpm (31,416 rad.min-1)

Nominal size

Min.: 0.25 in

Max.: 1 in

Description

These rotary unions help ensure fluid transfer to your turning rolls single circuit or circuit return. Activities: – Food – Chemistry, Plastic, Health – Metallurgy, Mechanics and Subcontracting – Trading – Mineral products – Transport and Logistics Technical Data: Number of ports: 1 way, 2 ways Fluid: Air, Water, Oil, Steam Material: Stainless Steel Surface treatment: Not available Implantation: Angle elbow Temperature working: -20°C à 200°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.
